Product Description:
1 ,Hot Foil Stamping Unit

1,The foil can step in both cross and longitudinal two directions
(2 cross rollers and 3 longitudinal rollers), which can greatly
meet different client's needs in various stamping.
2,The foil can step, which greatly meet client's needs in various
stamping. 12 heating zones can be set individually and in constant
temperature.
3,Adopting imported servo-motor and computer for foil control
system, foil convey and tension is constant.
4 , The adoption man-machine interface monitors to show the system,
making the machine circulate the appearance to be clear at a
glance; breaking down the manifestation, breaking down the
exclusion with proficiency, real realizes person machine dialogue,
person machine
Features:
- Product Name: Automatic Hot Foil Stamping Machine
- Max. Stamping Range: 1030×740mm
- Min paper size: 1030×740mm
- Max.Pressure: 320 Tons
- Max.Stamping Speed: 10T
- Sheet Thickness: Cardboard:0.1-3mm (80-2000gsm) Corrugated
Board:≤4mm
- Heating Plate Zone Power: 34KW

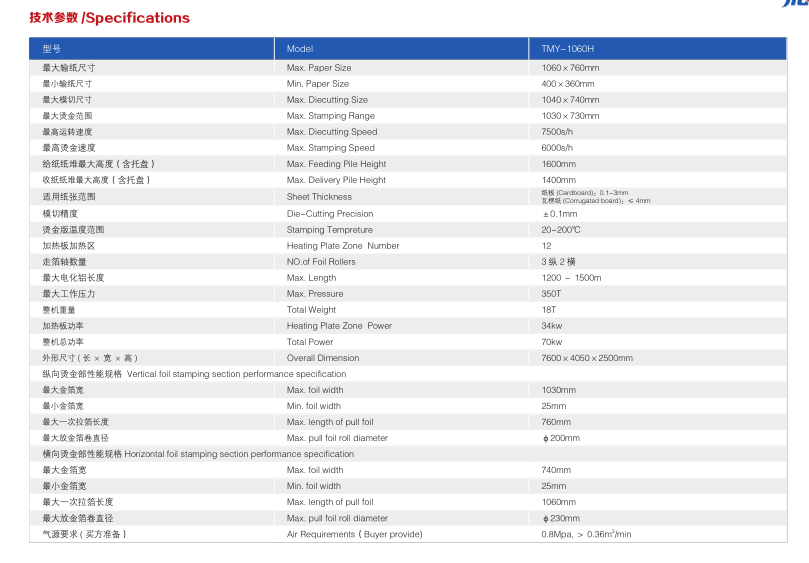

Technical Parameters:


Applications:
The SING JIGUO TMY-1060H Automatic Foil Stamping & Die Cutting Machine is a
multifunctional device designed for a wide range of applications.
The machine is ideal for stamping and die cutting of various
materials, from paper and cardboard to leather and plastic. It is
equipped with a max. stamping size of 1060mm, a max. stamping speed
of 7500s/h, a max. pressure of 320 tons, and a tempreture range of
20~200℃.
The Automatic Foil Stamping & Die Cutting Machine is widely used in
the printing, packaging, and packaging industries. It can be used
to print logos, designs, and patterns on paper, cardboard, leather,
and plastic. The machine is perfect for printing and die cutting
labels, boxes, bags, tags, and other products. The machine is also
capable of producing high-quality, long-lasting printed and die cut
products that are ideal for a wide range of commercial and
industrial applications.
The Automatic Foil Stamping & Die Cutting Machine is a reliable,
efficient, and cost-effective solution for businesses and
individuals who need a high-performance machine with great
features. It offers maximum pressure, maximum stamping speed, and
adjustable tempreture, making it an ideal choice for a wide range
of applications. The machine is designed with a total weight of 20T
and total power of 70KW to ensure maximum efficiency and
performance.
Customization:
SING JIGUO TMY-1060H Automatic Foil Stampig & Die Cutting machine is a customisable service from China, with a max. length of 1200
to 1500m, max.stamping force of 10T, max. diecutting speed of
7500s/h, max.stamping speed of 6000s/h, and a number of foil
rollers of horizontal: 3, vertical: 2. It offers excellent Max Pressure, Max runing speed, Max Pressure, Number of Foil
Rollers to meet your needs.
Support and Services:
Technical Support and Service for Automatic Hot Foil Stamping
Machine
At ABC Corporation, we provide a full range of technical support
and service for our Automatic Hot Foil Stamping Machine. Our team
of experienced technicians are available to answer any questions
you may have in regards to installation, operation, maintenance and
repair of the machine.
We offer a comprehensive maintenance and repair service, where our
technicians will inspect, repair and overhaul the machine if
necessary. We also provide training and technical support to our
customers who have purchased the Automatic Hot Foil Stamping
Machine from us.
Should you have any queries regarding the Automatic Hot Foil
Stamping Machine, please do not hesitate to contact us. Our team of
technical experts is available to assist you with any problem you
may have.
Packing and Shipping:
Packaging and Shipping for Automatic Hot Foil Stamping Machine
The Automatic Hot Foil Stamping Machine is packaged securely for
safe delivery to the customer. The product is placed in a cardboard
box and secured with foam inserts to ensure that it is not damaged
during transit. The box is then labelled with the customer's
delivery address and barcode. It is then placed in a larger
cardboard box and sealed with packing tape.
The product is shipped by a reliable courier service. The customer
receives an email with tracking details and an estimated delivery
date. The product is typically delivered within 3-5 business days.
FAQ:
- Q1: What is the Brand Name of the Automatic Hot Foil Stamping
Machine?
- A1: The Brand Name of this Automatic Hot Foil Stamping Machine is
SING JIGUO.
- Q2: What is the Model Number of the Automatic Hot Foil Stamping
Machine?
- A2: The Model Number of this Automatic Hot Foil Stamping Machine is
TMY-1060H Automatic Foil Stampig & Die Cutting machine.
- Q3: Where is the Automatic Hot Foil Stamping Machine made?
- A3: This Automatic Hot Foil Stamping Machine is made in CHINA.
- Q4: What kind of material does the Automatic Hot Foil Stamping
Machine work with?
- A4: This Automatic Hot Foil Stamping Machine is suitable for
stamping on paper, plastic, leather and other materials.
- Q5: Does the Automatic Hot Foil Stamping Machine have any safety
features?
- A5: Yes, this Automatic Hot Foil Stamping Machine is equipped with
a safety guard and an emergency stop button to ensure the safety of
the operator.
