    940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

    Ask Lasest Price
    Brand Name : JIGUO
    Model Number : 970
    Certification : CE
    Price : $50000~$60000/1 Set
    Supply Ability : 1~50SET
    Delivery Time : 45days
    • Product Details
    • Company Profile

    940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

    JIGUO High Quality Paper Cup Printing Cutting Machine Roll Die Cutting Machine


    Paper Cup Printing Cutting Machine Introduction


    This series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it’s widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.

    940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

    Products Description​ Of Paper Cup Printing Cutting Machine

    PARAMETER
    Model970

    Max cutting area

    940X610(mm)

    Cutting precision

    ±0.20mm

    Paper gram weight

    120-400g/㎡

    Production capacity

    100-200times/min

    Air pressure requirement

    0.5Mpa

    Air pressure consumption

    0.25m³/min

    Max cutting pressure

    300T

    Weight

    8T

    Max roller diameter

    1600mm

    Total power

    16KW

    Dimension

    6000x2200x1800mm


    Local Details Of Paper Cup Printing Cutting Machine

    940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

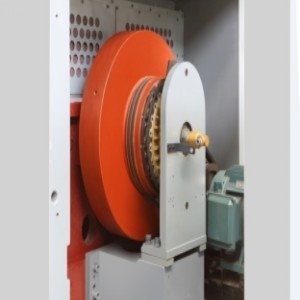

    1. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

    Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.

    940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

    2. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.

    940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

    3. Correction Unit This device is controlled by Motor, which can fix and adjust the paper in a correct position. (left o right)


    Application Of Paper Cup Printing Cutting Machine

    940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine
