MY-1320Q/1500Q/1680Q Lead Edge Feeding Automatic Die Cutting
Machine
√ Exclusively for laminated board and corrugated board with the
newest servo-drive feeding system.
√ Accurate die-cutting from E flute to AB flute.
√ Completed stripping is by stripping system and grip edge waste
removal device.
√ Excellent adaptability for small and big production.
√ Reliable safety performance and dual safety security device
designed. (Air brake and power-off shutdown devices.)
√ All operation is on the exterior of the machine.
√ High Productivity, Precise Die-cutting, Precise Creasing, Smooth
Stripping and Convenient Operation.
Main Features
1. Equipped with pneumatic clutch and pneumatic locking plate.
2. Lead edge feeding paper. The high-speed and high precision paper
feeding device can transmit all kinds of corrugated paper whenever
how the quality of paper is. Equipped with light-adjusted device
and has suitable ability.
3. Automatic adjusting paper feeding, paper collecting and paper
aligning.
4. Automatic gripper type equipped the tooth row, open bite
adjustable, under the help of paper, cardboard can run smoothly.
Automatic suction suck about using leading edge of paper, tooth row
gripper-style, curved cardboard and tissue paper can also be passed
no scratches.
5. Pneumatic take samples when machine working, can check the die
cutting effect at any time.
6. Dusting air guns, can effectively remove the template, and dust
inside the device.
7. Automatic lubricating can add lubricating oil on the chain gear
according to time, extended the working life of machine
8. Using alarm bells agencies in warning tone when the device is
turned to raise safety warning.

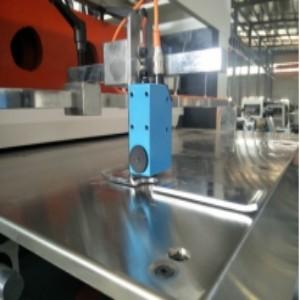

9. Equipped with a precision of detection (Taiwan Riko) fiber optic
switch, the paper is in place to detect and avoid paper waste.
Products Description
| PARAMETER |
| Model | MY-1320Q | MY-1500Q | MY-1680Q |
| Max. sheet size | 1320X960(mm) | 1500X1105(mm) | 1680X1235(mm) |
| Min. sheet size | 450X465(mm) | 500X465(mm) | 580X500(mm) |
| Max. die cutting size | 1300X940(mm) | 1480X1090(mm) | 1660X1220(mm) |
| Max.cutting speed | 6000s/h | 5500s/h | 4500s/h |
| Die cutting precision | ±0.18mm | ±0.2mm | ±0.25mm |
| Sheet thickness | 200-2000g/㎡(Cardboard) ≤10mm(corrugated board) | 250-2500g/㎡(Cardboard) ≤10mm(corrugated board) | 250-2500g/㎡(Cardboard) ≤10mm(corrugated board) |
| Max.pressure | 380T | 400T | 480T |
| Total power | 37kw | 37kw | 38kw |
| Net weight | 22T | 25T | 28T |
| Overall dimension | 8200X4600X2260mm | 9200X5100X2260mm | 9900X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
Advantage
This MY-1680Q automatic die cutting machine for corrugated board is
equipped with front conveyor delivery mechanism. The two groups of
pressing wheels and two times positioning function will make the
products much flatter, and improve the accuracy and speed. The
machine’s development is combined with advantages of similar
products in domestic and other countries, is ideal equipment for
packing products such as cartons and paper box.
Features:
1. Gripper bars with high intensity are applicable to all kinds of
cardboard, paperboard and corrugated paper.
2. Frontal, back and side registration mechanism ensures great
precision of die –cutting.
3. Other parts are adopted such as intermittent mechanism with high
precision, air clutch, pneumatic locking mechanism, programmable
controller and man-machine interface.
4. The interface can display various digital information of machine
such as working speed, amount of paperprocessed, total running
timeetc. It is easy to eliminate troubles according to the display
of trouble shooting
5. Transducer is adopted to control the main motor in achieving
step-less speed variation.
6. Optional: Stripping function.
