Product Description:
Our Automatic Box Window Patching Machine is an advanced and
reliable equipment for paper box window patching. It integrates
automatic feeding, window patching and automatic unloading. It is
suitable for the window patching of different paper boxes. It can
be used for 1-6mm corrugated paper with a maximum paper size of
730*650mm and a maximum film size of 350*300mm. The maximum working
speed of this machine is 8000 sheets per hour. It is widely used in
industries such as food, cosmetics, medicine, daily necessities,
stationery, hardware and electronics. Our Window Patching Machine
is your best choice for efficient and high-quality window patching.
Features:
- Product Name: Window Patching Machine
- Processing Type: Printing Machine
- Cardboards: 200-2000g/ M²
- Product Type: WIndow Patching Machine
- Max. Paper Size: 730*650mm
- Corrugated Paper: 1-6mm
- Special Features: Flat window, corner cutting line, Automatic Box
Window Patching Machine, Paper Box Window Patching Machine
Technical Parameters:
| Model | TC-750L |
| Max. Paper Size | 730*650mm |
| Min. Paper Size | 100*150mm |
| Max. Film Size | 350*300mm |
| Min. Film Size | 50*50mm |
| Film Sheet Thickness | 0.1-0.3mm |
| Max. Working Speed | 8000s/h |
| Cardboard | 200-2000g/ m² |
| Corrugated Paper | 1-6mm |
| Total Power | 8.5 KW |
| Total Weight | 3000KG |
| Overall Dimensions | 6800*1400*1700mm |
Branch Introduction
Paper correction
Double push gauge correction is adopted to reduce errors. A locking
device is installed on the power gear, which can adjust the
parallelism of the two push gauges according to product
requirements.
Filming Unit
■ Independent servo control system is adopted Users can adjust the
film length as per product size without shutdown. The base material
can be adjusted horizontally; Meanwhile ,chamfer lines are cut
automatically after the paper is positioned accurately according to
the above regulations attach the films to paper box and cut the
film via automatically transverse cutter The precision of film
attachment is up to ±0 .5mm.
■ The standard configuration, two vertical lines can be pressed,
and the pressure of the line can be adjusted manually. There are
two pressure roller grooves with different depths and thicknesses
below, which can adapt to different thicknesses of films. The
pressure roller and the pressure groove can be adjusted left and
right.
Applications:

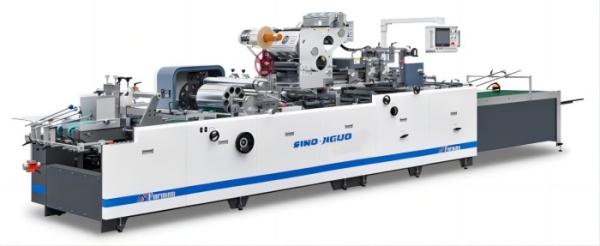

SINO-JIGUO TC-750L Automatic Window Patching Machine
SINO-JIGUO TC-750L Automatic Window Patching Machine is the perfect
choice for window patching applications. It is designed to
automatically patch windows of cartons or boxes with film sheet
thickness of 0.1-0.3mm. It has a maximum working speed of 8000s/h
and maximum paper size of 730*650mm, making it ideal for high speed
packaging. It is manufactured with a min. film size of 50*50mm to
ensure precise patching.
This Automatic Window Patching Machine is manufactured with the
highest quality components and parts for long lasting performance.
It is also backed by a 1 year warranty to ensure your satisfaction.
SINO-JIGUO TC-750L Automatic Window Patching Machine will help you
to get the job done quickly and efficiently.
Customization:
Window Patching Machine
- Brand Name: SINO-JIGUO
- Model Number: TC-750L
- Place of Origin: CHINA
- Product Type: Window Patching Machine
- Min. Paper Size: 100*150mm
- Corrugated Paper: 1-6mm
- Cardboards: 200-2000g/ M²
- Max. Working Speed: 8000s/h
Keywords
- Automatic Window Patching Machine with Corner Cutting & Creasing
Function
- Window Patching Machine Flat window, Corner Cutting Line
- Paper Box Window Patching Machine
Support and Services:
Window Patching Machine Technical Support and Service
We offer technical support and service for our Window Patching
Machine.
Technical Support
- Telephone support
- Email support
- Remote access support
- On-site technical support
Service
- Regular maintenance
- Troubleshooting
- Repairs
- Upgrades
- Spare parts
Packing and Shipping:
Packaging and Shipping for Window Patching Machine
The Window Patching Machine is shipped in its original packaging,
including the following components:
- Window Patching Machine
- Power cord
- User manual
To ensure the safe delivery of your Window Patching Machine, we use
high-quality materials to wrap and secure the machine, as well as
additional padding to protect from shock and vibration during
transport.
We ship the Window Patching Machine via a reliable and trackable
courier service, so you can be sure your package will arrive safely
and on time.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is SINO-JIGUO.
Q2: What is the model number of this product?
A2: The model number of this product is TC-750L.
Q3: Where is this product made?
A3: This product is made in China.
Q4: What is the purpose of this product?
A4: This product is a Window Patching Machine, which is used to
seal cardboard boxes.
Q5: What is the size of this machine?
A5: This Window Patching Machine is 750mm in length and 1050mm in
width.
