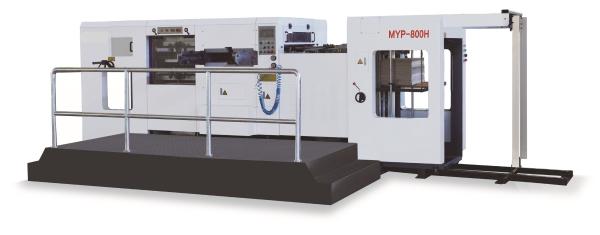

Product Description:
Die Cutting Stripping Machine is a powerful and efficient machine
designed for the die cutting and stripping of heavy-duty corrugated
board and thin cardboard. It can cut a variety of materials
including corrugated board and thin cardboard with thickness from
0.1mm to 4mm and 80-2000gsm. With Max.paper size up to 810 x 610mm,
Min. Gripper Edge as small as 5mm, Max.pressure of 250 Tons and
Total power of 14.5KW, the machine offers excellent cutting
accuracy and efficiency, and can reach a Max.cutting speed up to
8500s/h.
Features:
- Product Name: Die Cutting Stripping Machine
- Max.paper size: 810×610mm
- Product name: Automatic Die Cutting & Stripping Machine
- Sheet thickness: Corrugated Board :≤4mm Cardboard:0.1-1.5 Mm (
80-2000gsm )
- Max.Stripping speed: 7500s/h
- Max.cutting size: 790×590mm
- Min. Gripper Edge: 7mm
- Max.pressure: 250T

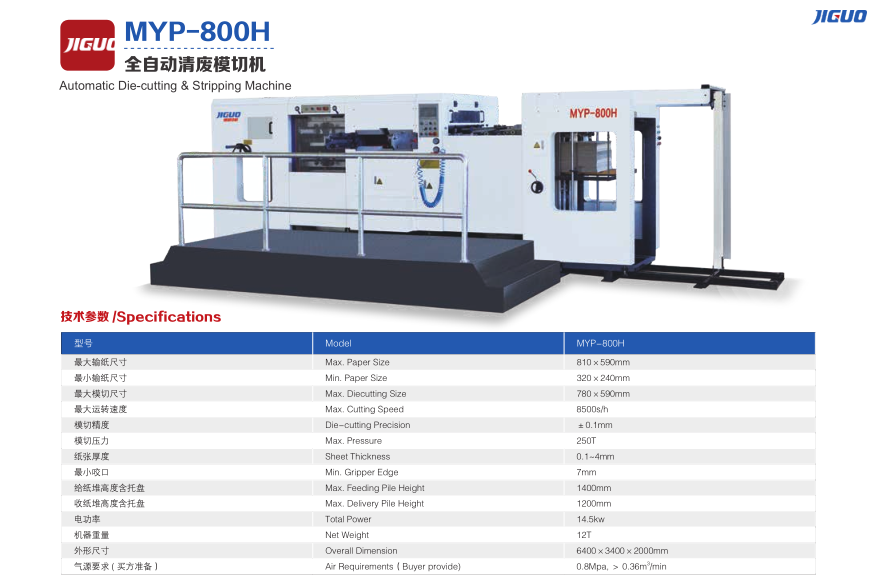

Technical Parameters:
Automatic Die-cutting With Stripping Machine Local Details
1 ,Paper Feeding Unit
The enlarged paper feeding head (Feida head) has 9 suction nozzles
applicable for paper in different thicknesses and 5 paper feeding
nozzles which can be independently adjusted for parallel paper
feeding. It also has 4 paper lifting nozzles which can move up and
down in a large stroke especially applicable for small corrugated
paper. The large power wind pump provides a high suction force. It
can be conveniently adjusted; paper can be divided reliable, and it
runs fast and stably.
2 ,Paper Conveying Unit:
The paper conveying part is made of stainless steel plate to
prevent rust and provide stable and correct paper conveying.
3 ,Die-cutting Unit
The cast wall plate is rejected because of its low pulling force
but high deformation, and steel wall plate is applied like Japan
machines. The
pulling force is enlarged, i.e. the pressing force is enlarged, and
it becomes firm and endurable without any deformation.
2) This machine is upgraded to a brand high level by the automatic
pressure regulation and automatic front scale regulation. The
addition of this function upgrades it into a convenient and
favorable digital device with high controlling speed.
Application field
Support and Services:
Technical Support and Service for Die Cutting Stripping Machine
Our team is dedicated to providing reliable technical support and
service for our Die Cutting Stripping Machine. Our technicians are available 24/7 to answer any questions or
troubleshoot any issues you may have. Whether it's operational
issues, maintenance, or installation, our team is here to help.
We offer a variety of services, including:
- Technical Support and Troubleshooting
- Installation and Setup Assistance
- Preventive Maintenance and Service
- Upgrades and Repairs
- Spare Parts and Accessories
We also provide training and education services to ensure you get
the most out of your Die Cutting Stripping Machine. Our
instructional materials are designed to help you understand the
operation and maintenance of your machine.
If you need assistance with technical support and service for your
Die Cutting Stripping Machine, please don't hesitate to contact us.
Packing and Shipping:
Packaging and Shipping of Die Cutting Stripping Machine
The Die Cutting Stripping Machine will be delivered securely
packaged in a wooden crate. The crate will include all components
necessary to operate the machine, including the product manual. The
crate will then be shipped in a standard delivery truck or
containerized for ocean shipping.
FAQ:
- Q: What is the brand of the Die Cutting Stripping Machine?
- A: The brand of the Die Cutting Stripping Machine is SING JIGUO.
- Q: What is the model number of the Die Cutting Stripping Machine?
- A: The model number of the Die Cutting Stripping Machine is
MYP-800H Automatic Die-Cutting & Stripping Machine.
- Q: Where is the Die Cutting Stripping Machine manufactured?
- A: The Die Cutting Stripping Machine is manufactured in China.
- Q: What are the main features of the Die Cutting Stripping Machine?
- A: The Die Cutting Stripping Machine has a double servo motor, an
adjustable pressure system, and a double photo-sensing system.
- Q: What materials can be used for the Die Cutting Stripping
Machine?
- A: The Die Cutting Stripping Machine can be used with paper, film,
aluminum foil, and other materials.
