Product Description:

Automatic Die Cutting Machine is perfect for all your die cutting needs. The maximum paper size is 1060*760mm, and the maximum diecutting size is 1040*740mm, allowing you to cut a wide range of materials. It is capable of cutting cardboard with thicknesses ranging from 0.1mm to 3mm, and corrugated paper with a maximum thickness of 4mm. The Automatic Die Cutting Machine is 17T in weight, and comes with an Automatic Feeding System for maximum convenience.

Features:

• Product Name: Automatic Die Cutting Machine
• Feeding System: Automatic
• Safety System: Emergency Stop
• Min paper size: 400*360mm
• Max paper size: 1060*760mm
• Weight: 17T

Technical Parameters:

Applications:

SING JIGUO's Automatic Die Cutting Machine MY-1060H from China is ideal for cutting Cardboard and Corrugated Paper with a max paper size of 1060*760mm and a cutting thickness of 0.1-3mm for Cardboard and 4mm for Corrugated Paper. With a weight of 17T, this Automatic Die Cutting Machine has an Automatic Feeding System and an Emergency Stop Safety System for high-precision and safe cutting.

Customization:

Support and Services:

Automatic Die Cutting Machine offers extensive technical support and services to ensure that you get the most out of your machine. Our technical support team is available 24/7 to answer any questions and concerns you may have regarding its installation, maintenance, and troubleshooting. We also provide a wide range of services to help you maintain and repair your machine, including preventive maintenance, repairs, testing, and calibrations. Our team is highly skilled and certified, and will work closely with you to make sure your Automatic Die Cutting Machine is running smoothly and safely.

Packing and Shipping:

Automatic Die Cutting Machine Packaging and Shipping:

• The machine will be securely packaged in a box.
• The box will be placed on a pallet and shrink wrapped for extra protection during transit.
• The machine will be shipped via a reliable carrier.
• Tracking information will be emailed to the customer once the shipment has been dispatched.

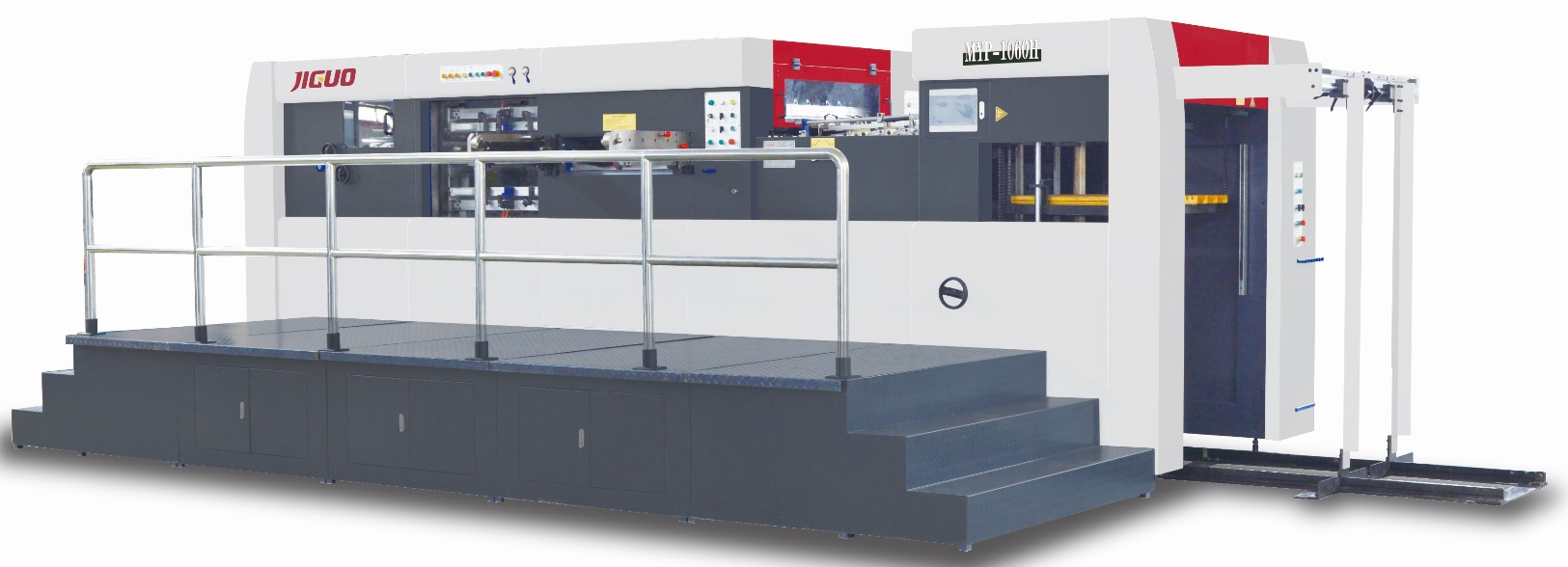

IGUO MYP-1060H Automatic Die Cutting And Stripping Machine

1. Automatic Die Cutting Machine is designed for die cutting specially.
It suits for more than 80g/m2 paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.
2. The machine includes 5 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, stripping, and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scrath. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.

Automatic die-cutting and creasing machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced.

Products Description​

PARAMETER
Model	MYP-1060H
Max. sheet size	1060X760(mm)
Min. sheet size	400X360(mm)
Max. die cutting size	1040X740(mm)
Max.cutting speed	7500s/h
Die cutting precision	±0.1mm
Sheet thickness	0.1~4mm
Max.pressure	350T
Total power	21kw
Net weight	19T
Overall dimension	(6200+1450)X(2280+1850)X(2230+670)mm
Air requirements	0.8Mpa,>0.36m³/min

IV,Descriptions of the entire product

Paper Feeding Unit	The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably.
Paper Conveying Unit	The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying. The incline-type paper moving table top is more suitable to high-speed thin paper and location. Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.
Main Chain	The main chain of toothpicks are all imported original German IWIS high-quality chain, made in Germany.
Die Cutting Unit	This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed. The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency. The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

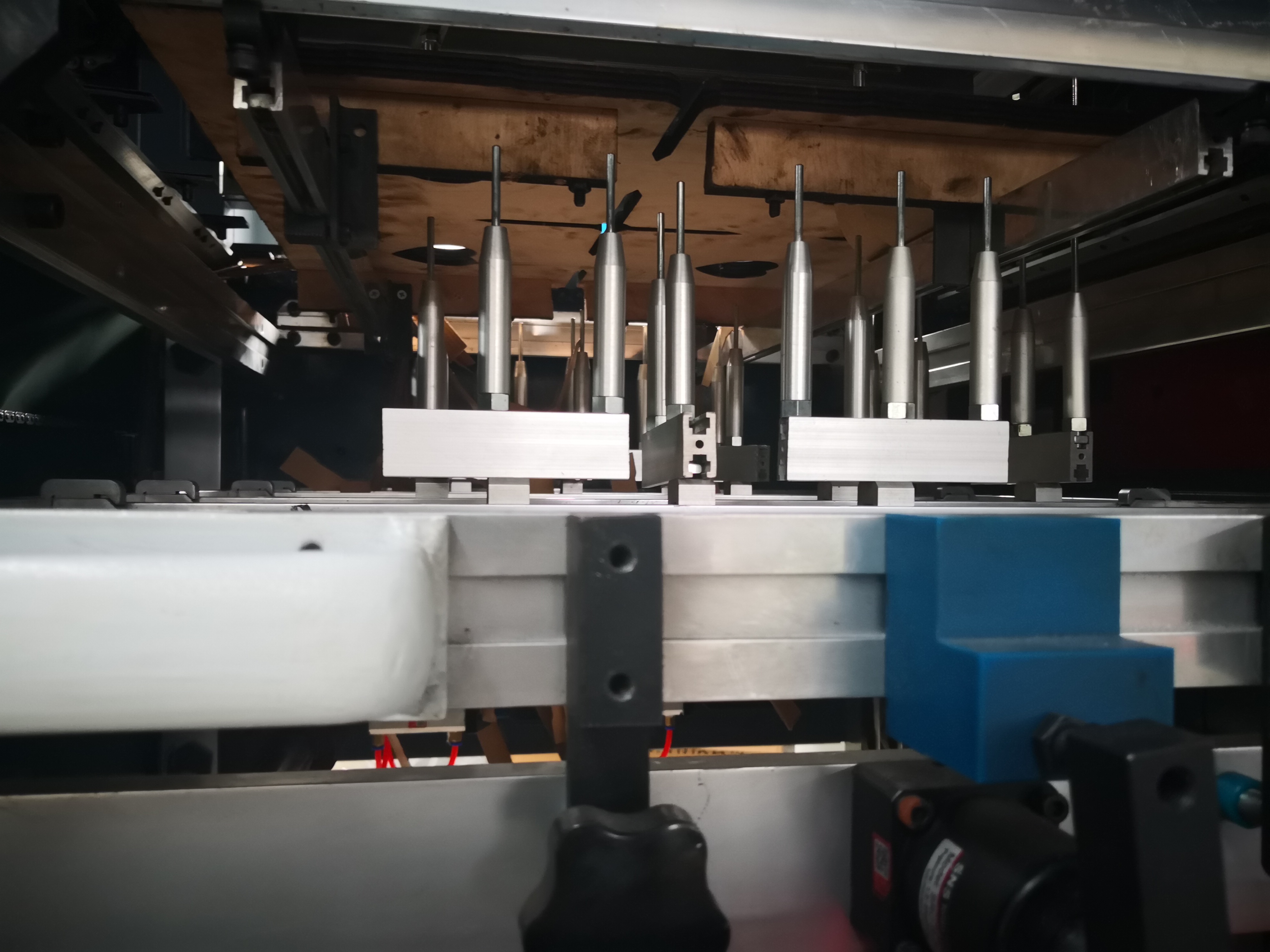

Paper Stripping Unit	By the one-time stripping system, all irrelative paper scrapes and waste edges (except the held margins) can be stripped in die-cutting. The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating. The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time. The preliminarily loading platform is equipped with a centering unit to facilitate the mounting of stripping plate. The stripping process is reasonably designed to eliminate the defect of low speed and plate deviating during stripping.
Paper Collecting Unit	Paper can be collected automatically and orderly. The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting. By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.
Electrical Control Unit	The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting. The human-machine interface can display various working conditions, indicate fault positions and give solutions. The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.

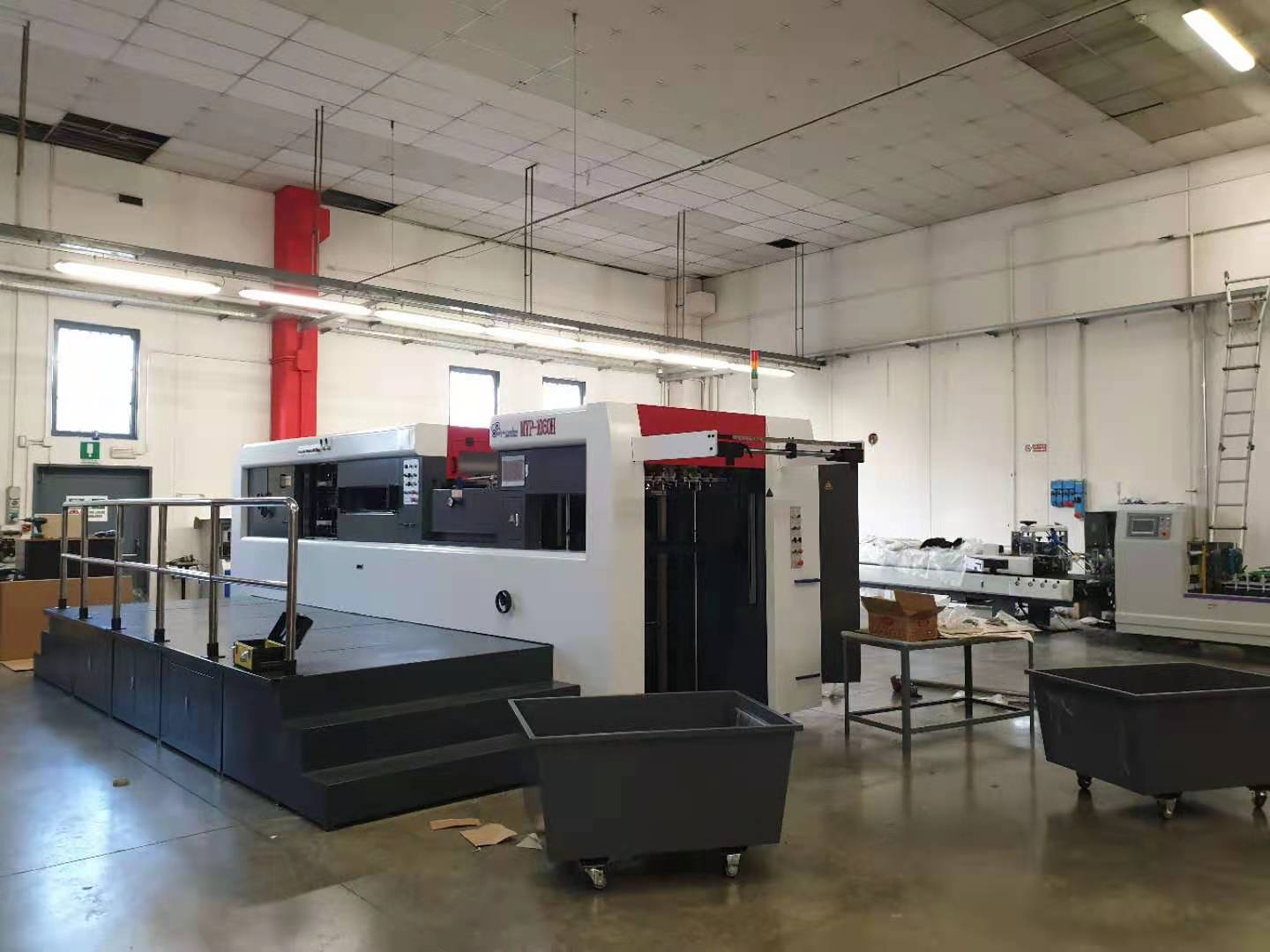

In Customer Workshop
