BMY-1680A Higher Configuration Semi-automatic Die Cutting And
Creasing Machine
Automatic Die Cutting Machine is the main equipment for
paper,carton,trademarks and all
kinds of paper packing products die cutting.
Our machines equip with high precision intermittent
structure,pneumatic plate_lock,air clutch
and overload protection to ensure the high speed and high running
steady of machines.And
in order to make fulfill working efficiency of our machines,we also
add the pre code paper part,
twice paper feeding structure,variable speed paper feeding
structure,auto paper collecting
structure,pneumatic sampling structure,auto timing oil lubricating
and the forced air cooling for
main drive lubricating devices to this machine.
All our electrics and driven parts are international famous brands
so that we can ensure the
high die cutting precision and steady when machines running.The PLc
and electronic monitor
control the system,which makes the problems adjusted and solved
more easily.The electrical
box is cooled by air convection device to protect the electric
components running steady under
the controlled temperature.
Products Description
| PARAMETER |
| Model | BMY-1680A |
| Max. sheet size | 1680X1235(mm) |
| Min. sheet size | 580X500(mm) |
| Max. die cutting size | 1660X1220(mm) |
| Max.cutting speed | 4200s/h |
| Sheet thickness | 200-2500g/㎡(Card paper) ＜8mm(corrugated paper) |
| Max.pressure | 480T |
| Total power | 16.5kw |
| Net weight | 18T |
| Overall dimension | 6750X5300X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min |

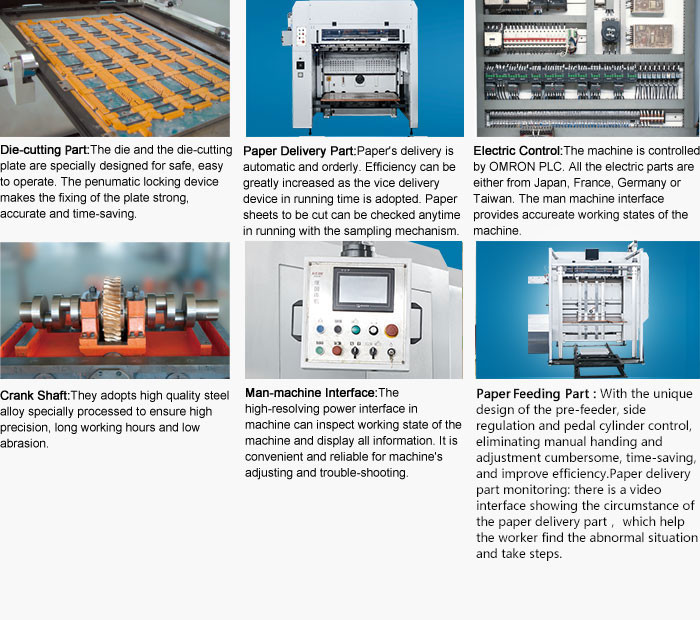

System introduction
Feeding and Collecting Part
1. The extra feeder can do paper and corrugated board,Install the
vacuum pump of BECKER.
2.At the middle of head install the monitor ,worker can easily see
the back.
3. Pre-paper pile design and special pneumatic bench can save much
time.
4. The non-stop sampling system can check the board accurate
without stop the machine.
Feeding table
1. Additional brush wheels and pressing wheels for thin paper and
corrugated board running.
2. Advance push and pull lay of registration can assure the die
cutting precision.
3. Rikko light front lay detection system prevent the slanting
paper move in main body.
Main body
1. Adopt automatic centralized lubricating system and setting main
chain lubricating
system by HMI.
2. Patented design shock absorption system can prolong the life of
main body and
increase the pressure.
3. The intermittent gearbox made in Taiwan can assure the accurate
registration and
decrease the gripper attack.
Diecutting part and Delivery system
1. Diecutting chase fixed accurately by pneumatic lock system.
2. Diecutting plate is putted in and out by air floating device.
3. Electric clutch system of main chain can assure the chain steady
when it is
stopped at high speed.
4. Main chain and assist chain is lubricated periodically
controlled by PLC.
5.Protection window of diecutting can hold the main body clean.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
