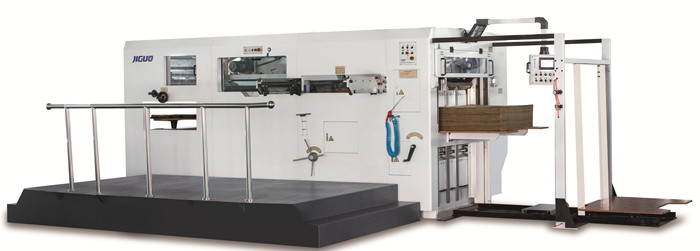

    15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm

    Ask Lasest Price
    Brand Name : JIGUO
    Model Number : BMY-1500P
    Certification : CE
    Price : $50,000 to $100,000/1 Set
    Payment Terms : L/C, T/T
    Supply Ability : 50 set
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm

    JIGUO Corrugated Paper Die Cutting Punching Machine With Stripping


    Detail Product Description


    1. Semi-automatic die-cutting and peeling machine for 250-2500g/m² Cardboard and corrugated paper below 8mm.


    2. The machine consists of four parts: paper feeder, paper feeding part, main motor and paper outputting part.And can automatically complete the work cycle of feeding, die cutting, stripping and receiving.


    3. The feeder suction and conveying ESD system can convey plastic sheets smoothly. Adopt imported heating current and temperature control system, 12-stage adjustment Independent while ensuring temperature stability and solving white edge problems die cut plastic material and burr phenomenon.


    4. The machine is equipped with an automatic lubrication system, the pendulum and all copper tiles are reworked by hand. We scrap the surface and fill it with criss-cross scratch. The grooves hold more oil, which can ensure smooth operation and pattern accuracy.

    15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm


    Products Description​

    PARAMETER
    ModelBMY-1500P
    Max. sheet size1500X1105(mm)
    Min. sheet size500X420(mm)
    Max. die cutting size1480X1090(mm)
    Max.cutting speed5000s/h
    Sheet thickness

    250-2500g/㎡(Card paper)

    <8mm(corrugated paper)

    Max.pressure400T
    Total power15kw
    Net weight18T
    Overall dimension7650X4850X2260mm
    Air requirements0.8Mpa,>0.36m³/min

    Local Description

    15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm

    15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm


    15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm


    15KW Corrugated Box Paper Die Punching Machine With Stripping 1500×1105mm

    FAQ

    1. Q: Are you trading company or manufacturer?

    A: We are manufacturer, and also provide the business solution to all the friends.

    2. Q: What is your delivery time ?

    A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

    3. Q: Can you help us to buy other goods?

    A: Sure of that, it is our honor to work for you, and control the goods quality.

    4. Q: How was your machine warranty ?

    A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

    cost spare parts and free maintenance knowledge .

    5. Q: How can you do after sales service ?

    A: Beside the quality guarantee, our company also regards the after sales service, using a full

    arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
    hours on phone / on site technical support / on site service / preventive maintenance also training
    again.

    6. Q: What’s your payment terms ?

    A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

    accepted for us .
