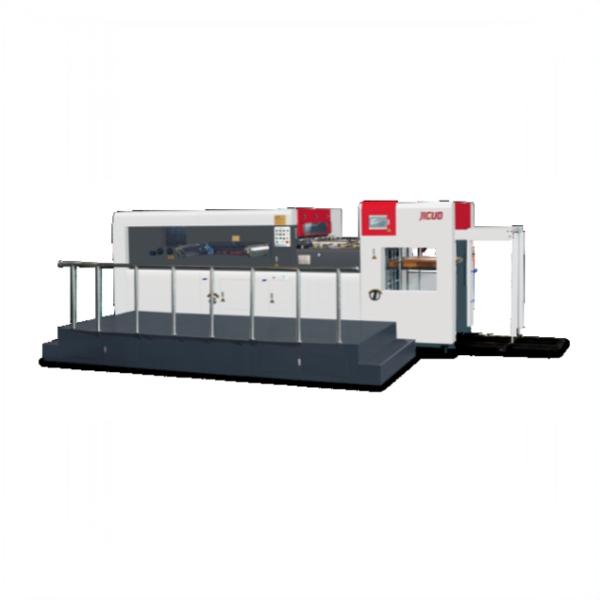

MY-1320E Feeder Feeding Automatic Die Cutting & Creasing Machine The Good
And Cheapest Die Cutting Machine
Advantage
1. Which adopts high technology with gear main drive can run max
speed 6000s/h, shorter
preparation process and perfect quality, which professional applies to all
kinds of corrugated
board.
2. Paper hold down pressing plate is adjustable to adapt warped
board, no double sheets
to ensure continuous and smooth feeding.
3. Front gauge non-stop back and forth adjustable to accommodate
variation in gripper
margin.
4. Main drive adopts high quality precision worm gear and toggle
system.
5. Centreline system for quick stripping tool set up and change
over, compatiable with
centreline Il.
6. Front edge waste removal system removes and transfers waste edge
outside the
machine visa conveyor belt.
7. Counter can set based on your products stack request, which will
be improve working
efficiency.
8. Motorized upper frame suspending hoister.
Products Description
| PARAMETER |
| Model | MY-1320E |
| Max. sheet size | 1320X960(mm) |
| Min. sheet size | 450X400(mm) |
| Max. die cutting size | 1300X940(mm) |
| Max.cutting speed | 6000s/h |
| Die cutting precision | ±0.15mm |
| Sheet thickness | 250-2500g/㎡(Cardboard) ≤8mm(corrugated board) |
| Max.pressure | 380T |
| Total power | 20kw |
| Net weight | 18T |
| Overall dimension | 7500X4600X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Details
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18monthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
