MY-1060E/1080E/1200E cardboard Automatic sheet fed flatbed die cutting and creasing
machine

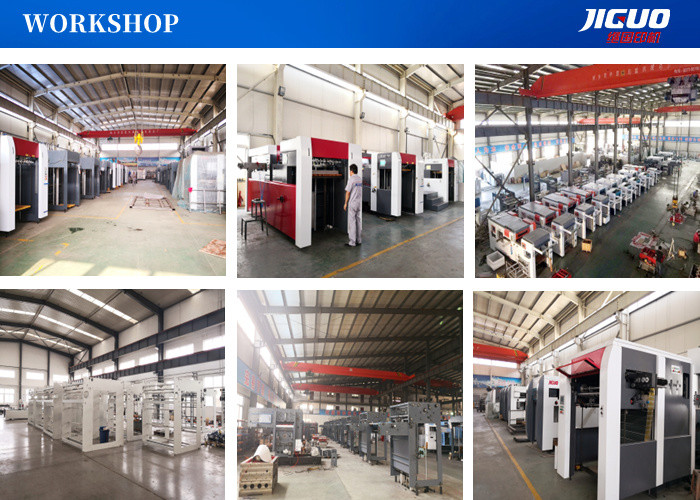

This machine is designed and Manufactured by JIGUO Machinery
factory in China. It is designed to efficiently convert various
grades of paper and carton at high speed with minimal set up times
and for ease of operation, and at economic price.
1. Automatic Die Cutting Machine is designed for die cutting
specially. It suits for more than 80g/m2 paper, cardboard,
corrugated paper below 4mm, pasting paper, laminating paper and so
on.
2. The machine includes 4 parts: Feeder, paper feed section, main
motor and delivery section. And it can finish feeding, die cutting,
and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that
realize to make a change in the breadth frequently.
4. The machine is equipped with automatic lubrication system. And the
swing rod and copper tile are all reworked by hand. We scrap the
surface and make it full of criss-cross scrath. The groove hold
more oil that can ensure smooth going of the operation, and the
precision of the pattern.
Products Description
| PARAMETER |
| Model | MY-1060E/MY-1080E | MY-1200E |
| Max. sheet size | 1060X760(mm)/ 1080X780(mm) | 1200X780(mm) |
| Min. sheet size | 400X370(mm) | 400X370(mm) |
| Max. die cutting size | 1030X750(mm) | 1150X750(mm) |
| Max.cutting speed | 7500s/h | 7500s/h |
| Die cutting precision | ±0.1mm | ±0.1mm |
| Sheet thickness | 0.1~3mm | 0.1~3mm |
| Max.pressure | 320T | 320T |
| Total power | 18kw | 18kw |
| Net weight | 16T | 16.8T |
| Overall dimension | 6400 x 3950 x 2360mm | 6400 x 4080 x 2160mm |
| Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
JIGUO 1080E Automatic Die Cutting and Creasing Machine is the main
equipment for making high-grade color box, plug and different shapes of ink cartons.The machine
adopts Anchuan servo system, Gogol four axes motion controller,
non-pressure feeding system, high strength gripper teeth row, whole
swing front guide, automatic pushing guide, high precision interval
structure, pneumatic locking plate. Pneumatic clutch, overload
protector, automatic paper collecting, makes our machine has a
short paper feeding distance, positioning correctly, paper
collecting in order, can also do non-gripper die cutting.Computer
control makes the whole machine running automatically, man-machine
interface display the working condition and trouble dealing method.
Key components, control systems and fasteners are imported and
carefully assembled to ensure the safety and reliability of the
machine. With many sensors and protection devices to ensure machine
working and workers safety.
1. Automatic vacuum paper, orderly and clean
2. Non-stop delivery gate plate can improve efficiency. When the
paper stack is high enough, we can pull out the collect cardboard
and push-in another piece deceive paper gate plate to change at the
same time, thus achieved the non-stop delivery.
3. Pneumatic sampling, which are accessible at any time to check
the die cutting paper, very convenient.
FAQ
1.Q:Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q:What is your delivery time ?
A:Normal delivery time is 30-55working days beside less stock model
after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q:How was your machine warranty ?
A:our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q:How can you do after sales service ?
A:beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q:What’s your payment terms ?
A:30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
