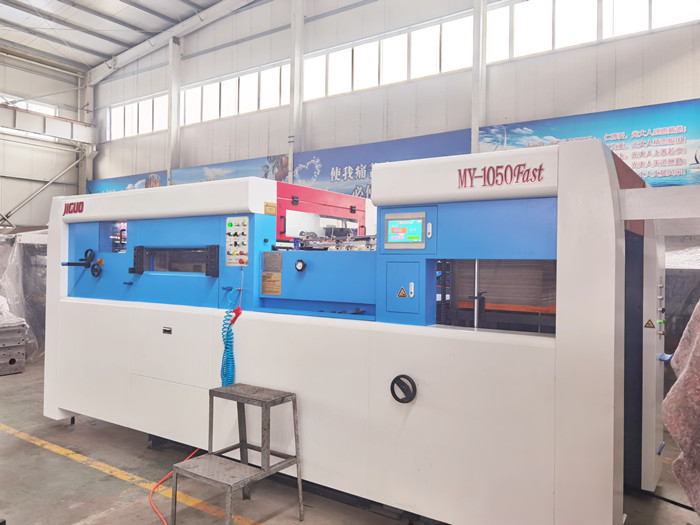

MY-1050Fast Automatic corrugated carton box making
machine/ cardboard partition slotting machine
Speed over 10000 sheets/hour
Products Description
| PARAMETER |
| Model | MY-1050Fast |
| Max. sheet size | 1060X760(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X740(mm) |
| Max.cutting speed | 10000s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness | 0.1~4mm |
| Max.pressure | 350T |
| Total power | 21kw |
| Net weight | 17T |
| Overall dimension | (5100+1450)X(2280+1850)X(2230+670)mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Advantage
1. Which adopts high technology with gear main drive can run max
speed 8500s/h, shorter
preparation process and perfect quality, which professional applies to all
kinds of corrugated
board.
2. Paper hold down pressing plate is adjustable to adapt warped
board, no double sheets
to ensure continuous and smooth feeding.
3. Front gauge non-stop back and forth adjustable to accommodate
variation in gripper
margin.
4. Main drive adopts high quality precision worm gear and toggle
system.
5. Centreline system for quick stripping tool set up and change
over, compatiable with
centreline Il.
6. Front edge waste removal system removes and transfers waste edge
outside the
machine visa conveyor belt.
7. Counter can set based on your products stack request, which will
be improve working
efficiency.
8. Motorized upper frame suspending hoister.
Application
This automatic die-cutting machine can be equipped with a waste
removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic
Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
Company Profile
Tangshan JIGUO Printing Machinery Co., LTD., founded in 1996, is a
high-tech enterprise
started jointly by a number of senior engineers, and is located in
the central area of YuTian
County within the golden triangle economic zone consisted by
Beijing, Tianjin and Tangshan
city with 42.81 mu area covered. Our company has a technical team consisting of 160 elite
personnel who conteribute to our strong technical power, high level skills of design, assembly
and manufacturing, perfect management system and advanced processing and testing
equipment. Our company is specialized in production of post-print paper packaging equipment,
and has established long-term scientific cooperation for die-cutting machine schemes with the
Beijing Institute of Graphic Communication. The company is a modern enterprise incorporating
the design, research and development, sales and service.
Since first launched in market in 1996, with stable quality and
reasonable price, our
products have received many praises for our quality and reputation. Our
company has
become an internationally famous enterprises with products sold well all over
the country
and exported to over 20 countries, including the United States, South Korea,
Russia, India,
Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on. JIGUO die-cutting
series
products are the star products of our company. We have been incessantly pursuing our
dream; with excellent quality,preferential prices and excellent service, we have been
cooperating with friends at home and abroad closely to obtain mutual benefit and reciprocity,
and create a better tomorrow.
Our company adheres to the ideas "Technology boosts enterprise” and
"Create first-class
products". Advanced management concepts and ideas regarding talents as the
base,
technology as the soul,quality as the foundation, brand as the
flag, marketing as the power
and service as the source of the company, contributes to rapid development of our enterprise.
Our products have passed the ISO9001 quality certification and the
CE certification.Since its
establishment, Tangshan JIGUO printing machines have attended hundreds of large
exhibitions at domestic and abroad, and have won many honorary awards in the industry and
received thousands of praises from domestic and international packaging
enterprises.
Attended all the big exhibition in domestic Beijing, Shanghai, Guangzhou. And
all the big
exhibition in India, Egypt, Brazil, Turkey, Russia, Italy, Germany and so on. We
have now
grown into a well-known domestic post-press equipment manufacturing expert.
Certifications
Our products have passed the ISO9001 quality certification and the
CE certification.We have
now grown into a well-known domestic post-press equipment
manufacturing expert.
Exhibition & Clients
FAQ
1.Q:Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q:What is your delivery time ?
A:Normal delivery time is 30-55working days beside less stock model
after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q:How was your machine warranty ?
A:our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q:How can you do after sales service ?
A:beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q:What’s your payment terms ?
A:30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
