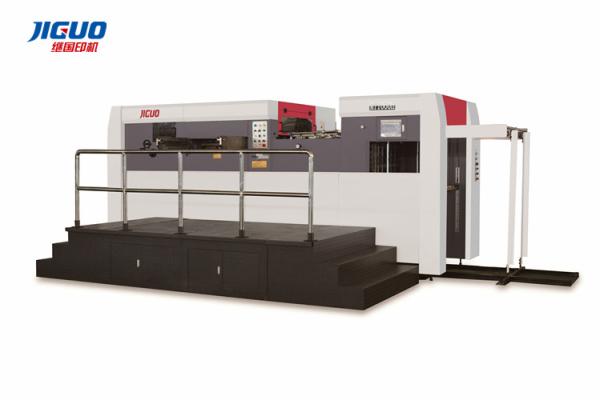

MY-1060H Corrugated Box Cartoon Cardboard Box Automatic Die Cutting Making Machine
1. Automatic Die Cutting Machine is designed for die cutting
specially. It suits for more than 80g/m2 paper, cardboard,
corrugated paper below 4mm, pasting paper, laminating paper and so
on.
2. The machine includes 4 parts: Feeder, paper feed section, main
motor and delivery section. And it can finish feeding, die cutting,
and collecting work cycle automatically.
3. The feeder is made inTaiwan, it has excellent flexibility, that
realize to make a change in the breadth frequently, last and
easily.
4. The machine is equipped with automatic lubrication system. And the
swing rod and copper tile are all reworked by hand. We scrap the
surface and make it full of criss-cross scrath. The groove hold
more oil that can ensure smooth going of the operation, and the
precision of the pattern.
Products Description
| PARAMETER |
| Model | MY-1060H |
| Max. sheet size | 1060X760(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X740(mm) |
| Max.cutting speed | 7500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness | 0.1~4mm |
| Max.pressure | 350T |
| Total power | 21kw |
| Net weight | 17T |
| Overall dimension | (5100+1450)X(2280+1850)X(2230+670)mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Advantage
This machine is designed and Manufactured by JIGUO Machinery
factory in China. It is designed to efficiently convert various
grades of paper and carton at high speed with minimal set up times
and for ease of operation, and at economic price.
Advanced and abundant configuration, such as high-precision
indexing mechanism, pneumatic plate-lock system, pneumatic clutch,
ensures stable and high-speed running of the machine. This machine
is equipped with practical and reliable mechanisms, such as
pre-stacking device, secondary feeding device, automatic timing
lubrication device, and cooling facility for gearbox, which ensure
the excellent performance of the machine.This automatic die-cutting machine can be equipped with a waste
removal function, which is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated
Boxes,Adhensive Stickers,etc.
FAQ
1.Q:Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q:What is your delivery time ?
A:Normal delivery time is 30-55working days beside less stock model
after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q:How was your machine warranty ?
A:our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q:How can you do after sales service ?
A:beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q:What’s your payment terms ?
A:30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
