    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet

    Ask Lasest Price
    Brand Name : JIGUO
    Model Number : MY-1320Q
    Certification : CE
    Price : $160000to $170000/1 Set
    Payment Terms : L/C, T/T
    Supply Ability : 30 set
    Delivery Time : 45 days
    • Product Details
    • Company Profile

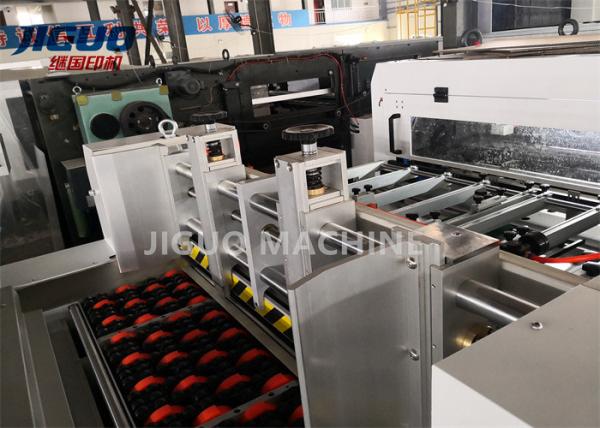

    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet

    MY-1320Q Lead Edge Feeding Automatic Die Cutting & Creasing Machine Cardboard Making Factory

    Main Body

    * Worm gear material is made of high quality alloy copper, precision machine tool processing,

    hand-scraping, high precision and especially wear-resistant

    * The shock absorption booster system makes the machine less wear and tear, more pressure

    * Using Japanese SMC rotary joint with pneumatic clutch, low noise, long life and smoother braking

    * Equipped with automatic centralized lubrication system, the crank connecting rod of the main drive

    adopts forced oil supply

    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet


    Products Description​

    PARAMETER
    ModelMY-1320Q
    Max. sheet size1320X960(mm)
    Min. sheet size450X465(mm)
    Max. die cutting size1300X940(mm)
    Max.cutting speed6000s/h
    Sheet Thickness≤10mm
    Max.pressure380T
    Total power25kw
    Net weight20T
    Overall dimension6750X4600X2260mm
    Air requirements0.8Mpa,>0.36m³/min

    Die Cutting Part

    * Safe and flexible design of the rotating device makes the board adjustment board faster

    and more convenient

    * The frame is made of pneumatic lock plate, the protective beam and the lock nut are designed

    to make the template more stable

    * The die-cut steel plate is made of 70Cr material, which is more durable; the upper part is

    provided with a floating air floating device, which makes the die-cutting board easy to

    enter and exit

    * Die-cut protective window design for safer operation


    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet


    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet


    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet

    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet

    Certifications

    Our products have passed the ISO9001 quality certification and the CE certification.We have

    now grown into a well-known domestic post-press equipment manufacturing expert.

    Lead Edge Cardboard Corrugated Die Cutting Machine Automatic Feeding 1320mm Sheet

    FAQ

    1. Q: Are you trading company or manufacturer?

    A: We are manufacturer, and also provide the business solution to all the friends.

    2. Q: What is your delivery time ?

    A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

    3. Q: Can you help us to buy other goods?

    A: Sure of that, it is our honor to work for you, and control the goods quality.

    4. Q: How was your machine warranty ?

    A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

    cost spare parts and free maintenance knowledge .

    5. Q: How can you do after sales service ?

    A: Beside the quality guarantee, our company also regards the after sales service, using a full

    arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
    hours on phone / on site technical support / on site service / preventive maintenance also training
    again.

    6. Q: What’s your payment terms ?

    A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

    accepted for us .
