MYR-1060High Corrugated Box Paper Box Automatic Hot Embossing And
Die Cutting Machine

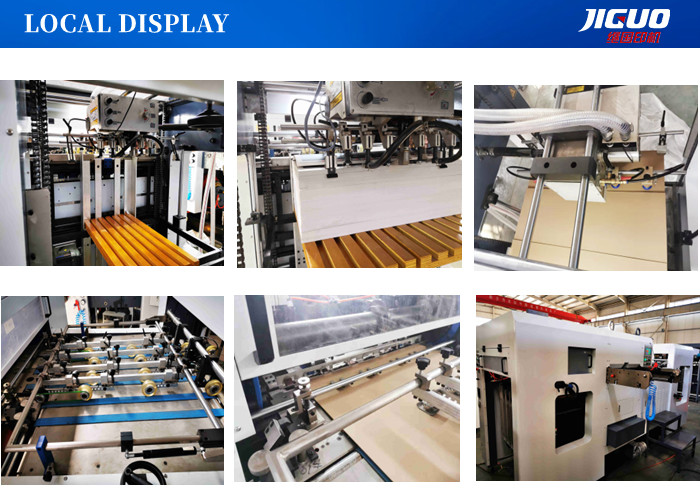

Machine Details
Paper Feeding part
Sheet suction feeder high speed and stable. Sheet separator is
reliable, There are 4-8 separating suckers can suitable for various
paper.
It have a vice feeding mechanism and vice feeding mechanism and
vice feeding mechanism transition, which ensure continuous feed
on-line.
Paper Tranfering Part
Sheet guide stable, location accurate. In the course of the
running, sheet location can be adjusted..
Fix widen conveyer belt us adopted, operator can be adjusted.
Register system is push-pull system, which can be suitable for
various paper without change.
Die-cutting and Creassing Part
New drive gear and servounit ensure high speed die cutting.
Overload protective system ensure that driving part and drive part
separate when accident overload.
Pneuma-lock plate , air clutch.
Unique die cutting frame prevent from deflecting or separating.
Paper Delivery Part
Delivery is automatic and even.
On-line vice delivery raise the efficiency.
On-line sampling mechanism ensure sampling anytime
Electrical Control Part
Electurically control system adopt computer control, which ensure
that feeding, guiding, die cutting and delivery automatic control
and real-time detection.
Man-machine interface indication system will show working state,
trouble position and shooting.
Safe guarden will alarm when accident, and automatic shut-down.
Products Description
| PARAMETER |
| Model | MYR-1060High |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.cutting speed | 7000s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness | 0.1~4mm |
| Die-cutting Pressure | 600T |
| Total power | 57kw |
| Total weight | 19T |
| Stamping Tempreture | 0~199℃ |
| Overall dimension | 6700X4100X2350mm |
| Air requirements | 0.8Mpa,>0.36m³/min |

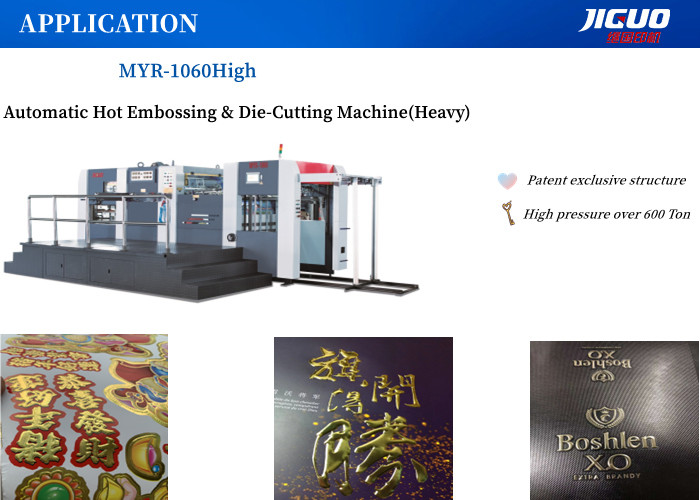

Application
This automatic die-cutting machine can be equipped with a waste
removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic
Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
