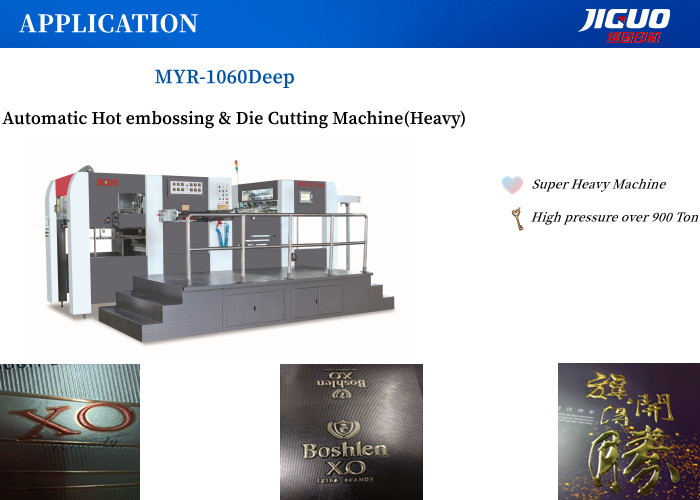

MYR-1060Deep Automatic Hot Embossing And Die Cutting Machine For Cardboard And Papers
Detail Product Description
1.Automatic Deep Embossing Die Cutting Machine is designed for die
cutting,embossing and creasing.It suits for 60-2000 g/m2cardboard,
and thickness below 4mm corrugated paper , pasting paper,
laminating paper and so on.
2.The machine includes 4 parts:feeder,paper feed section,main motor
and delivery section. And it finishs feeding,die cutting,embossing
and collecting work cycle automatically.
3.The thicken wall has1000Ton stress-tolerant ,makes embossing work
more clear,and effect more better.12 independent heated zones
provide 0-199°C temperature,make embossing pattern more variable
and higher quality. 900Ton cutting pressure makes the pattern more
stereoscopic.
4.The machine is equipped with automatic lubrication system.And the
swing rod and copper tile are all reworked by hand .we scrap the
surface and make it full of criss-cross scrath. the groove hold
more oil so that machine runs more smoothly , and maintain a higher
and longer precision working.
Products Description
| PARAMETER |
| Model | MYR-1060Deep |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.cutting speed | 6500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness | 0.1~4mm |
| Die-cutting Pressure | 900T |
| Total power | 62kw |
| Total weight | 20T |
| Stamping Tempreture | 0~199℃ |
| Overall dimension | 7000X4100X2420mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Detail Display
 | 1. Feed Section * Taiwan YONGCHUAN high quality feeder * 4 suchk 4 send * easily adjusted front back, left right, up down * adjustable blowing * electrostatic removal system |

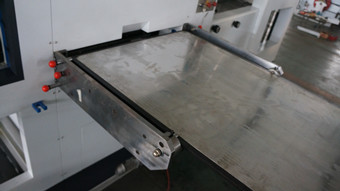

 | 2. Feeding postioning section * incline paper feeding table * pull and push dual purpose gauge * in-place reduction device * double sheet check device * waste alarm device * waste alarm device |
 | 3. Embossing/die cutting section * 900 tons cutting pressure * ±0.1mm cutting precision * max 6500 sheets/ht machine speed |
 | 4. Delivery Section * non-stop paper delivery system * paper blowing device * sectional adjustable brush * double pitch chain |
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
