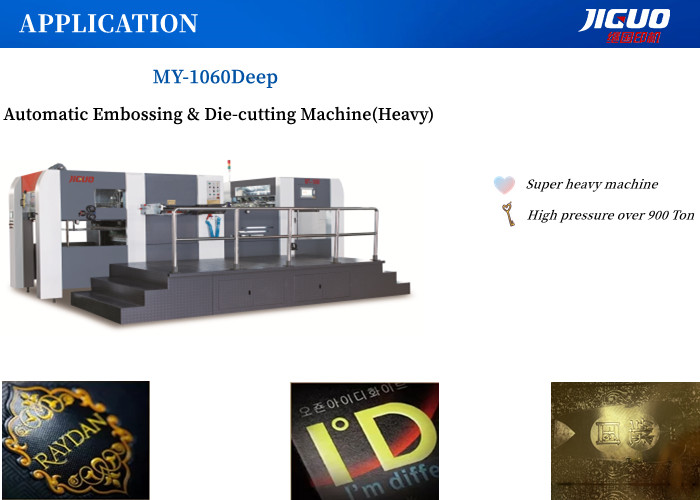

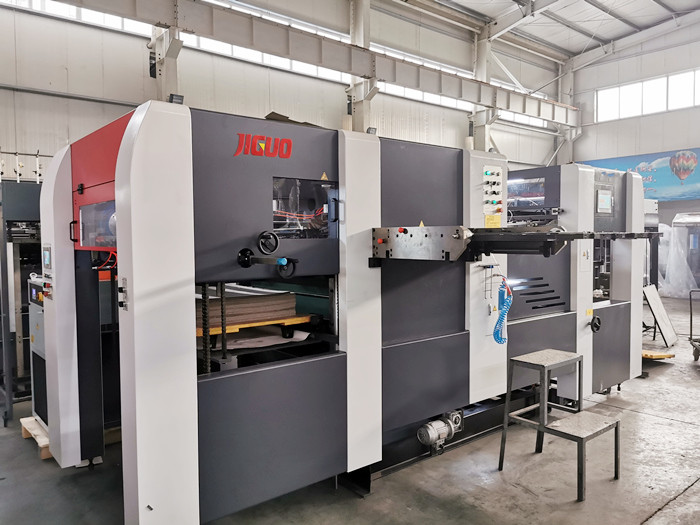

MY-1060Deep Fully Automatic Cardboard Die Cutter Automatic Embossing And Die Cutting Machine
Detailed product description
1. The automatic deep embossing die-cutting machine is specially
designed for die-cutting, embossing and creasing. It is suitable
for cardboard of 60-2000g/m2, corrugated paper with thickness below
4mm, paste paper, laminated paper, etc.
2. The machine consists of 4 parts: paper feeder, paper feeding
part, main motor and paper output part. And automatically complete
the feeding, die-cutting, embossing, receiving work cycle.
3. The thickened wall has a pressure resistance capacity of 1000
tons, which makes the embossing work clearer and the effect is
better. 12 independent heating zones provide 0-199°C temperature
for more variation in embossing patterns and higher quality. The
cutting pressure of 900 tons makes the pattern more
three-dimensional.
4. The machine is equipped with an automatic lubrication system.
The pendulum rod and copper tile are all reworked manually. The
surface is scrapped and full of criss-cross scratches. The grooves
hold more oil, allowing the machine to run smoother and maintain
higher and longer precision work.
Products Description
| PARAMETER |
| Model | MY-1060Deep |
| Max. sheet size | 1070X770(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X750(mm) |
| Max.cutting speed | 6500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness | 0.1~4mm |
| Die-cutting Pressure | 900T |
| Total power | 62kw |
| Total weight | 20T |
| Stamping Tempreture | 0~199℃ |
| Overall dimension | 7000X4100X2420mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Description
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
