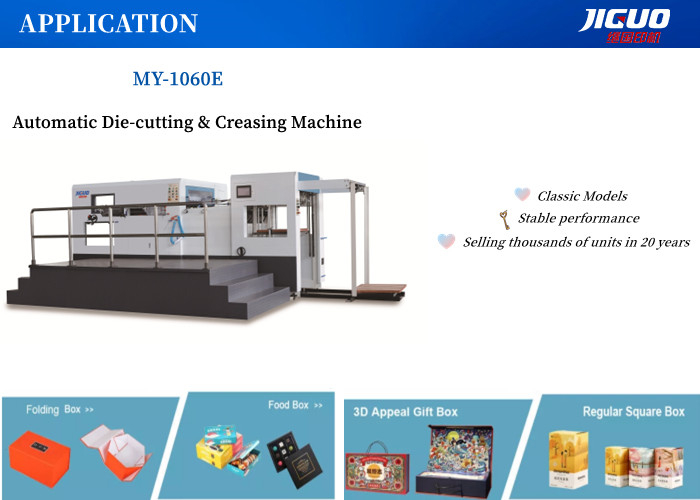

MY-1060E Automatic Die Cutting And Creasing Machine For Cardboard Carton Box
Product Description
* The pressed part is high-strength ductile iron QT500-7, cast by
special process
* High strength, never deformed
* The crankshaft is made of high-grade alloy steel imported from
Japan, which has been treated by a special process
* German SEW manufactures super wear-resistant worms and worm
gears.
* Precise pressure adjustment system, easy to adjust when the
machine is running.
* Automatic output device to ensure neat output.
* Equipped with electric automatic feeding, safe and convenient
feeding without stopping.
*Main chain protector.
* Anti-back device.
* Unique lateral positioning design makes each row of clamps on one
positioning line.
* Gripper positioning compensation device, ensure the stability of
the die cutting precision.
* Adjustable front and back positioning system, accurate
positioning and easy adjustment.
* Moving plate scissor cutting, make the pressure is uniform and
high.
* German imported torsion limits protector, avoid any damage to the
machine caused by an emergency, and ensure machine safety and
personnel safety.
* Convenient knife template turn-over device.
* Power supply lubrication system, main chain microcomputer control
automatic intermittent lubrication.
Products Description
| PARAMETER |
| Model | MY-1060E |
| Max. sheet size | 1060X760(mm) |
| Min. sheet size | 400X370(mm) |
| Max. die cutting size | 1030X750(mm) |
| Max.cutting speed | 7500s/h |
| Die cutting precision | ±0.1mm |
| Sheet thickness | Cardboard:0.1-3mm
Corrugated board:≤ 4mm |
| Max.pressure | 320T |
| Total power | 18kw |
| Net weight | 16T |
| Overall dimension | 6400X3950X2360mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Details
Application
This automatic die-cutting machine can be equipped with a waste
removal function, which
is suitable for Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic
Boxes,Hangtags,Paper
Boxes,Corrugated Boxes,Adhensive Stickers,etc.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
