TC-920L Fully Automatic Paper Tissue Box Corner Cutting Creasing
Window Patching Machine
TC-920L automatic window sticking machine, this machine is
intermittent positioning point-to-point positioning film.
Advantages: high precision, simple and convenient mechanical manual
adjustment. Paper feeding and film feeding are controlled by servo
motors respectively, and the rear segmented paper delivery belts
are independently driven by stepper motors, with adjustable stack
spacing and batch counting function. The delivery belt of this
machine adopts vacuum adsorption. It has the function of automatic
lifting and lowering of the gluing section when there is no paper,
and can follow the mark to punch the printed film. This machine
adopts PLC computer control, which has the characteristics of high
precision, maintenance-free, abnormal operation protection and so
on. It is suitable for local gluing and pasting of cardboard and
corrugated paper, and is suitable for PVC, PET, APET and other
films.
Specifications
| PARAMETER |
| Model | TC-920L |
Max. Paper Size | 900×680mm |
| Min. Paper Size | 150×150mm |
Max. film Size | 380×300mm |
Min. film Size | 50×50mm |
Suitable Paper Thickness | Cardboard:200 ～ 2000g/ ㎡
Corrugated board:1-6mm |
Film Thickness | 0.1 ～ 0.3mm |
| Positioning Accuracy | Top/bottom±0.5mm left/right±0.1mm |
Machine Speed | Over 8000 Sheets/hour |
| Power Voltage | 380V/50HZ(3Phase) |
Power | 10.5KW |
Total Weight | 3200KG |
| Overall Dimension | 7000*1570*1700mm |
Major Function
1. Cross-cut film + single-group laminating machine
2. Servo motor feeding paper
3. Servo motor feeding film
4. Delivery stepper with batch counting
5. Paper vacuum suction conveying
6. Double/empty gluing automatically rises
7. High-precision point-to-point positioning
8. Films with indentation and chamfering
9. Film printed side tracking label
10. Perforated film
11. Transverse creasing film (optional)
12. Film constant temperature leveling system (optional)

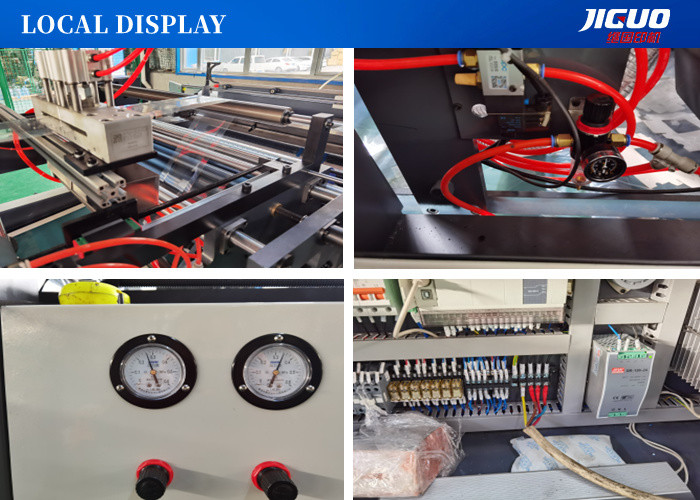

Local Display
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support
to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is
suitable for long-distance road transportation and various types of
weather conditions. A full set of maintenance and operation manuals
is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send
technicians (engineers) to your factory for installation and
training. You shall pay round trip air fare and accommodations,
plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For
special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before
delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine
before packing. If you want to use specific material to do the test
running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery.
Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
