TC-1050L Automatic Box Window Patching Gluing Machine With Corner V
Cut And Creasing
TC-1050L window sticking machine is widely used to stick
transparent film on the windows of various paper boxes, such as
tissue boxes, medicine boxes, shirt boxes, etc. The machine
consists of five units: paper feeding unit, positioning adjustment
unit, film sticking unit, conveying unit and gluing unit. Equipped
with heavy-duty steel structure to ensure high stability and
reliable operation of the machine.
Feature
1. Cross-cut film + single-group laminating machine
2. 7 servo motors + full digital control
3. 100 groups of orders to save and read
4. One-key automatic adjustment of V-shaped die
5. Delivery stepper with batch counting
6. Paper vacuum adsorption conveying
7. Double/empty gluing automatically rises
8. Films with indentation and chamfering
9. Foil printed side labels
10. Perforated film
11. Transverse creasing film (optional)
12. Film constant temperature leveling system (optional)
Specifications
| PARAMETER |
| Model | TC-1050L |
Max. Paper Size | 1030×720mm |
| Min. Paper Size | 150×150mm |
Max. film Size | 450×350mm |
Min. film Size | 50×50mm |
Suitable Paper Thickness | Cardboard:200 ～ 2000g/ ㎡
Corrugated board:1-6mm |
Film Thickness | 0.1 ～ 0.3mm |
| Positioning Accuracy | Top/bottom±0.5mm left/right±0.1mm |
Machine Speed | Over 7000 Sheets/hour |
| Power Voltage | 380V/50HZ(3Phase) |
Total Weight | 4000KG |
Local Display
 | Paper Feeding Section: The paper feeding belt of the machine adopts the Japanese brand
Nita, which solves the problem of unsmooth paper feeding in UV
printing. The paper feeding is realized by the bottom belt with
vacuum adsorption function. Driven by a servo motor, it can switch
between multiple feeding modes. |
 | Paper Transmission Correcting Rail: Tracks with self-locking linear bearings slide freely. It replaces
the traditional slow screw-drive handshake adjustment. The chain
track is made of polymer nylon material, which is wear-resistant
and low-noise. The deviation correction pin is driven by a servo
motor alone. |
 | Gluing Section: The glue roller is made of 304 stainless steel, which has strong
corrosion resistance and is easy to clean.
Horizontal and vertical gluing model rollers are driven by servo
motors and can be adjusted in both directions just stop. The gluing part has an automatic lifting function. Avoid glue
contacting the belt reduce the trouble of frequent downtime for
cleaning due to paper shortage. |

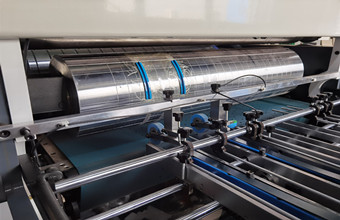

 | Film Patching Section: The cross-cutting knife is driven by a servo motor, and the cutting
angle is controlled with high precision. Compared with the
traditional drum drive, it has the advantages of low noise, fast
speed and controllable angle. Roller adsorption continuous pasting
is faster than traditional intermittent pasting and requires less
film. The film roll is driven by a servo motor alone, and the film
position can be adjusted freely when the machine is running. |
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support
to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is
suitable for long-distance road transportation and various types of
weather conditions. A full set of maintenance and operation manuals
is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send
technicians (engineers) to your factory for installation and
training. You shall pay round trip air fare and accommodations,
plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For
special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before
delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine
before packing. If you want to use specific material to do the test
running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery.
Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
