    Semi Automatic Servo Flute Laminator Machine Vacuum Suction Feeder Corrugated

    Ask Lasest Price
    Brand Name : JIGUO
    Model Number : FMZ-1650A-I
    Certification : CE, ISO9001
    Price : USD5000-10000/set
    Payment Terms : L/C, T/T
    Supply Ability : 60 sets per month
    Delivery Time : 50days
    • Product Details
    • Company Profile

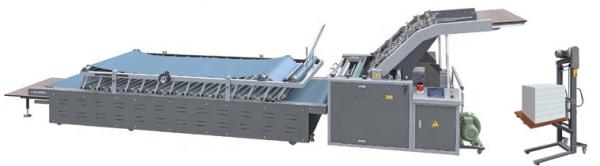

    Semi Automatic Servo Flute Laminator Machine Vacuum Suction Feeder Corrugated

    JIGUO FMZ-1650A-I Semi Automatic Servo Laminating Machines Vacuum Suction Feeder For Corrugated


    Features of semi-automatic servo laminating machine equipment:


    1. Independent technology research and development, domestic innovative enterprise of semi-automatic high-speed servo machine.


    2. The whole machine adopts a PLC control system. Compared with other delayers or intermediate relays, the PLC control system is accurate and stable, and the processing speed is obviously improved. If the circuit fails, the equipment can automatically display and alarm.


    3. The use of Taiwan Delta servo motor eliminates the use of brake, clutch, and low-optical signal signal conversion control, and realizes independent operation of PLC control system and servo single control, simpler operation, higher processing efficiency and better precision .


    4. The bottom paper adopts suction and automatic paper feeding. According to the speed of the top paper, it can continuously and automatically track the paper feeding.


    5. The advanced flexible front positioning method is adopted, with high positioning accuracy, and the bottom paper is not advanced. When the face paper is attached to the bottom paper, the alignment or the face paper is ahead for easy adjustment.


    6. The automatic glue replenishment system automatically replenishes the amount of glue consumed during the lamination process, and cooperates with the recycling of glue substances to reduce the amount of glue used.


    7. the scientific design of the metering roller linear speed to avoid the problem of glue rejection during high-speed operation


    8. The pressure of the pressing roller is adjusted unilaterally by the screw nut, which is convenient and quick to operate.


    9. The rocker controls the lifting of the washing roller, which is convenient for cleaning the lower roller of the gluing part.


    10. Humanized design counter, convenient to record daily workload and convenient to work in piece counting.


    Semi Automatic Servo Flute Laminator Machine Vacuum Suction Feeder Corrugated


    Specifications

    PARAMETER
    ModelFMZ-1650A-I
    Max. Sheet size of laminating1600×1250mm
    Min. Sheet size of laminating360mm×360mm
    Top paper thickness140-800g
    Bottom sheet thickness

    2/4 ply A/B/C/E/F Flute

    Working speed0-100 Plece /min
    Laminating precision±1mm
    Power6.5KW
    Weight3.53Tons
    Size8.8×2.25×1.7m

    Finished Products

    Semi-Automatic Flute Laminating Machine For Industrial Corrugated Cardboard Paper Sheet is used for brown corrugated paperboard and colorful corrugated board

    Semi Automatic Servo Flute Laminator Machine Vacuum Suction Feeder Corrugated


    Semi Automatic Servo Flute Laminator Machine Vacuum Suction Feeder Corrugated


    Semi Automatic Servo Flute Laminator Machine Vacuum Suction Feeder Corrugated

    FAQ


    Q1: Are you a manufacturer or a trading company?
    A: We have our own factory in Tangshan, Hebei Province.


    Q2. What is the machine warranty?
    A: One year. After the warranty, we still provide technical support to buyer at low cost.


    Q3. What is the production time while placing order?
    A: Normally about 20-30 days.


    Q4. What is the delivery time?
    A: 35-50days after deposit.


    Q5. Can your company handle shipping for customers?
    A: Yes, just give us destination sea port or container yard.


    Q6. Does the packing strong?
    A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.


    Q7. How about the machine installation and training?
    A: 1) We provide training in our factory for free; 2) We can send technicians (engineers) to your factory for installation and training. You shall pay round trip air fare and accommodations, plus each technician charges USD100/per day.

    Q8. Do you have machines in stock?
    A: For standard model, we have a large quantity in stock.For special model,we need 20-30 days to produce for you.


    Q9. How can you assure the machines' quality?
    A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.


    Q10. Do you inspect machines or test running before packing?
    A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material


    Q11. What's the payment term?
    A: T/T 30% in advance, the balance shall be paid before delivery. Also accept payment by West Union or L/C at sight.


    Q12. Do you accept factory visiting?
    A: Warmly welcome for your visiting.


    Q13. How many years are you in printing field?
    A: JIGUO factory is more than 20years.
