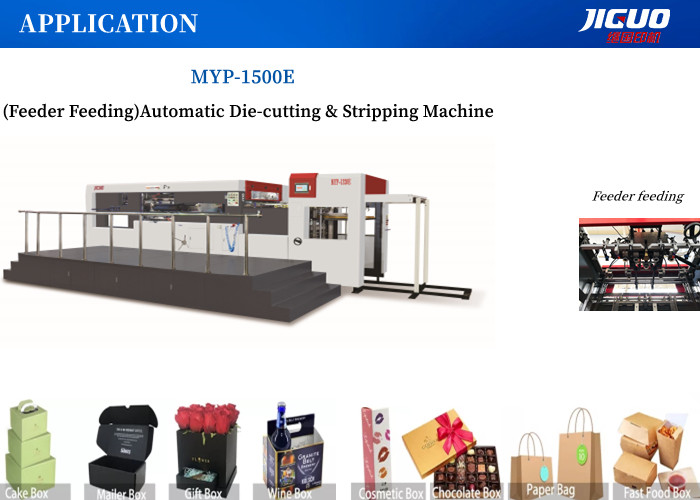

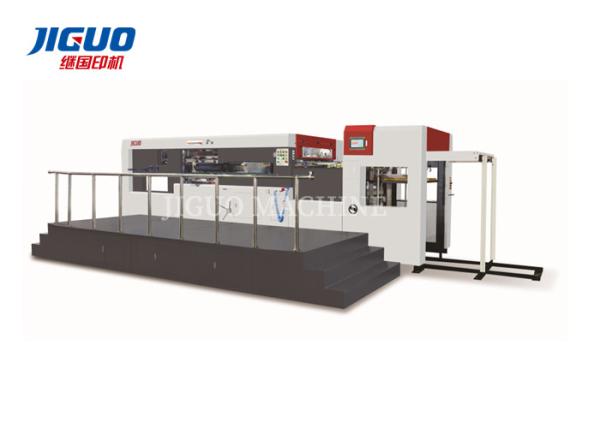

MYP-1500E The Good And Cheapest Automatic Die Cutting And Stripping Machine
Main features:
JIGUO MYP-1500E Autuomatic die cutting and stripping machine is a
special equipment applying to die-cutting of advanced colorful
boxes and cartons. The machine combines several advantages over
many other die-cutters both at home and abroad. Gripper bars with
high intensity are applicable to all kinds of cardboard, paperboard
and corrugated paper. Frontal ,back and side registration mechanism
ensures great precision of die-cutting. Other parts are adopted
such as intermittent mechanism with high precision at clutch,
pneumatic locking mechanism. Adopt programmable controller and
man-machine interface, automatic showing working speed , amount of
paper processed, total running time, etc. It's easy to eliminate
troubles according to the display of trouble shooting. Adopt
transducer to control main motor.
The machine has lots of sensors and safety-ensuring devices to
guarantee the safety if operator and the environment. Frontal and
back pressure can be adjusted separately. It is convenient to stop
the machine by handy. It can also realize die-cutting without
clipper margin .
Main Drive:
Adopt high quality steel alloy specially processed to ensure high
precision, long working life and low abrasion.
Pneumatic Clutch:
Adopt imported pneumatic clutch , long endurance and low noise,
braking stable and clutching fast with strong driving force,
conformed to the standard of the European export standard.
Paper Delivery Part:
Can achieve delivery paper automatic and in order. On-line
pneumatic sampling system, can checking the paper's precision, can
automatic early warning and speed droop.
Die-cutting Part:
The safety design of die-cutting floor and knife template and the
design of easily move and slewing devices make the installation and
adjustment of plate more efficient and convenient. The bottom of
cutting plate adopt 3mm thick stainless steel, the active base
plate adopt 2mm thick aluminium plate, that can save human
resources, efficient and convenient.
Gripper Bars:
The gripper bars are made of hard aluminium alloy with its surface
treated by anode oxidation. It is with high intensity, little
weight and inertia. Sheets' transferring can be finished with high
precision in high speed.
Products Description
| PARAMETER |
| Model | MYP-1500E |
| Max. sheet size | 1500X1105(mm) |
| Min. sheet size | 500X420(mm) |
| Max. die cutting size | 1480X1090(mm) |
| Max.cutting speed | 5000s/h |
| Die cutting precision | ±0.18mm |
| Sheet thickness | 250-2500g/㎡(Card paper) <8mm(corrugated paper) |
| Max.pressure | 400T |
| Total power | 20kw |
| Net weight | 23T |
| Overall dimension | 9400X5100X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |

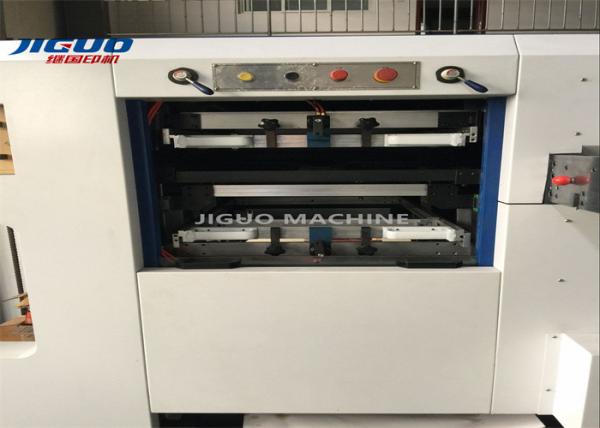

Local Details
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
