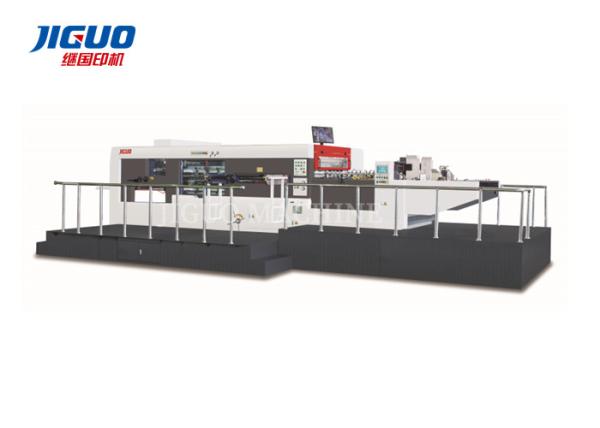

MYP-1500Q Lead Edge Feeding Automatic Die Cutting And Stripping Machine For
Corrugated
Characteristics:
1. Pre-loading device,micro-adjustment function for the platform ,can
save the time and
improve the efficiency.
2. The paper transfer bridge adopts independent servo motor drive
system,it can do the
continuous feeding and sheet feeding,it can make the corrugated
paper feed without
overlapping and flatten, improve the quality of products.the unique
design can meet the
request of different customer, and the two functions one-click
conversion, easy to operate.
3. The front guide and side guide make the location,and the push guide
is used alternately
to satisfy the different thickness paper.
4. Electric front guide can be integrated and split automatic and flexible fine-tuning, it can
save time, effort and improve the efficiency and precision of work greatly.
5. The chain of the gripper is the original German IWIS , high precision, not stretching, and
long life. The main bearings are imported NSK and SKF, high
accuracy, long life. The gripper
is with anode oxidation treatment. It is rigid and small inertia, can meet the high-speed and
accurate transfer of paper, and long life.
6. The wallboard and die cutting station,the core part of the die-cutting machine,which
is made
of ductile iron casting and composed of high-precision machining
parts, is of high precision
and high pressure,it can satisfy the die cutting of dense mesh
pattern, and the pressure can
reach more than 400T.
7. Taiwan intermittent gearbox ,has high accuracy, no noise and long
life.
8. Advanced automatic electrical control, unique and practical program
design, imported
electrical components , color touch screen,man-machine interface,
it makes the operation much
more intuitive, simple and convenient. All of them display the high
end, atmosphere, function and
quality of the machine.
Products Description
| PARAMETER |
| Model | MYP-1500Q |
| Max. sheet size | 1500X1105(mm) |
| Min. sheet size | 500X465(mm) |
| Max. die cutting size | 1480X1090(mm) |
| Max.cutting speed | 5500s/h |
| Die cutting precision | ±0.2mm |
| Sheet thickness | <10mm |
| Max.pressure | 400T |
| Total power | 37kw |
| Net weight | 25T |
| Overall dimension | 9200X5100X2260mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
