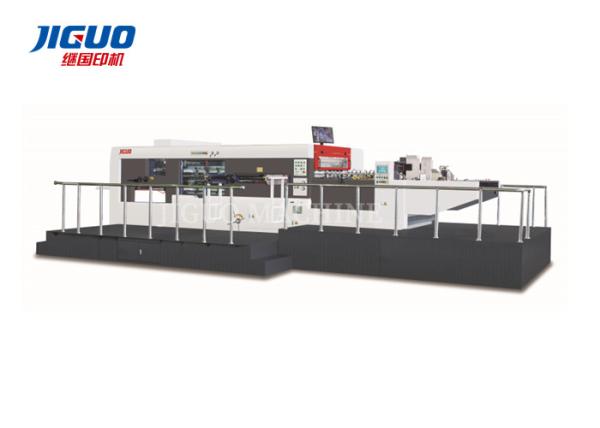

MYP-1680Q Lead Edge Feeding Automatic Die Cutting Machine with Stripping
Products Description
| PARAMETER |
| Model | MYP-1680Q |
| Max. sheet size | 1680X1235(mm) |
| Min. sheet size | 580X500(mm) |
| Max. die cutting size | 1660X1220(mm) |
| Max.cutting speed | 4500s/h |
| Die cutting precision | ±0.25mm |
| Sheet thickness | <10mm |
| Max.pressure | 480T |
| Total power | 38kw |
| Net weight | 28T |
| Overall dimension | 9900X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Feeding Parts
Lead edge feeder
* Independent servo-type leading edge, paper feeding mode can
adjust the transfer length
arbitrarily, maximizing reduce the damage to the strength of
corrugated board
* Left and right baffle can be electrically adjusted
* Use high-power high-pressure fan to ensure smooth delivery of
warped cardboard, air
volume can be adjusted by micro-machine to adapt to 3-9mm
corrugated paper
Feeding table
* Adjustable brush and platen roller ensure accurate delivery of
cardboard to front and side
gauges
* Advanced push gauge and pull gauge can accurately put the
cardboard into the accurate
die-cutting position and enter the die-cutting section
* Taiwan Ruike photoelectric sensor can effectively prevent paper
misplacement from entering
the machine, thus reducing the scrap rate and improving the die
cutting accuracy
* The paper pressing part is controlled by the cylinder, which
makes lifting easier
company information referance
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us.
