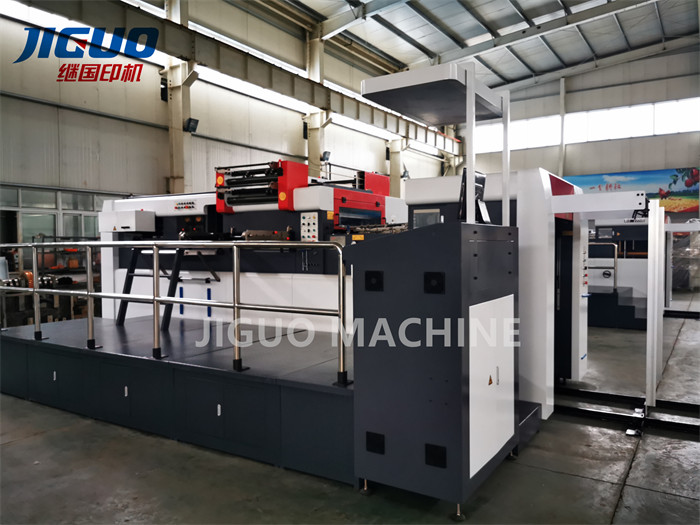

MYP-1320X/1500X/1680X Bottom Suction Nozzle Lead Edge Feeding
Automatic Die Cutting & Stripping Machine
Main Features
1. Equipped with pneumatic clutch and pneumatic locking plate.
2. Lead edge feeding paper. The high-speed and high precision paper
feeding device can transmit all kinds of corrugated paper whenever
how the quality of paper is. Equipped with light-adjusted device
and has suitable ability.
3. Automatic adjusting paper feeding, paper collecting and paper
aligning.
4. Automatic gripper type equipped the tooth row, open bite
adjustable, under the help of paper, cardboard can run smoothly.
Automatic suction suck about using leading edge of paper, tooth row
gripper-style, curved cardboard and tissue paper can also be passed
no scratches.
5. Pneumatic take samples when machine working, can check the die
cutting effect at any time.
6. Dusting air guns, can effectively remove the template, and dust
inside the device.
7. Automatic lubricating can add lubricating oil on the chain gear
according to time, extended the working life of machine
8. Using alarm bells agencies in warning tone when the device is
turned to raise safety warning.
9. Equipped with a precision of detection (Taiwan Riko) fiber optic
switch, the paper is in place to detect and avoid paper waste.
Products Description
| PARAMETER |
| Model | MYP-1320X | MYP-1500X | MYP-1680X |
| Max. sheet size | 1320X960(mm) | 1500X1105(mm) | 1680X1235(mm) |
| Min. sheet size | 450X465(mm) | 500X465(mm) | 580X500(mm) |
| Max. die cutting size | 1300X940(mm) | 1480X1090(mm) | 1660X1220(mm) |
| Max.cutting speed | 6000s/h | 5500s/h | 5000s/h |
| Die cutting precision | ±0.15mm | ±0.18mm | ±0.2mm |
| Sheet thickness | 200-2000g/㎡(Cardboard) ≤10mm(corrugated board) | 250-2500g/㎡(Cardboard) ≤10mm(corrugated board) | 250-2500g/㎡(Cardboard) ≤10mm(corrugated board) |
| Max.pressure | 380T | 400T | 480T |
| Total power | 25kw | 25kw | 26kw |
| Net weight | 20T | 22T | 24T |
| Overall dimension | 6750X4600X2260mm | 7600X5100X2260mm | 8000X5450X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min | 0.8Mpa,>0.36m³/min |
Advantage
1. Pre-loading device,micro-adjustment function for the platform ,can
save the time and improve the efficiency.
2. Non-axial feeder , it uses the servo motor drive, then you can
adjust the paper size easily, quickly and flexibly, because without
the shaft drive, it can avoid the phenomenon of instability caused
by the wear of the power shaft after one year.Feeder has
four-suction, four-send and the high / low and tilt of the sucker
can do fine-tune. So it can meet the thickness of 157-2000g/m2 of
different paper and B corrugated paper.
3. The paper transfer bridge adopts independent servo motor drive
system,it can do the continuous feeding and sheet feeding, the
variable-speed transfer bridge, it can slow down the speed of the
paper before it reaches to the front head, then it can avoid the
impact deformation between the thin paper or corrugated head and
front guide,and ensure the accuracy of the die-cutting. When do the
sheet feeding, it can make the corrugated paper feed without
overlapping and flatten, improve the quality of products.the unique
design can meet the request of different customer, and the two
functions one-click conversion, easy to operate.
4. The front guide and side guide make the location,and the push guide
is used alternately to satisfy the different thickness paper.
5. Electric front guide can be integrated and split automatic and flexible fine-tuning, it can save time, effort and improve the efficiency and precision of work greatly.
6. The chain of the gripper is the original German IWIS , high precision, not stretching, and long life. The main bearings are imported NSK and SKF, high
accuracy, long life. The gripper is with anode oxidation treatment. It is rigid and small inertia, can meet the high-speed and accurate transfer of
paper, and long life.
7. The wallboard and die cutting station,the core part of the die-cutting machine,which
is made of ductile iron casting and composed of high-precision
machining parts, is of high precision and high pressure,it can
satisfy the die cutting of dense mesh pattern, and the pressure can
reach more than 300T.
8. Taiwan intermittent gearbox ,has high accuracy, no noise and long
life. the main transmission using Japan imported synchronous belt
drive, it is fast, low-noise and smooth transmission, This model is a for-enhanced, high-speed machine.
9. Advanced pressure automatic adjustment system. it adopts the
automatic pressure control system and can reach the fast
fine-tuning ,high configuration and stable performance.
10. Advanced non-stop rolling shutter-type delivery, which is of
high speed, high efficiency and stable performance.
11. Advanced automatic electrical control system, Panasonic PLC,
Panasonic servo drive motor, motion controller drive
system,Schneider Electric ,Taiwan AirTAC polite dynamic control components. Advanced automatic electrical control, unique and practical program
design, imported electrical components , color touch
screen,man-machine interface, it makes the operation much more
intuitive, simple and convenient. All of them display the high end,
atmosphere, function and quality of the machine.
