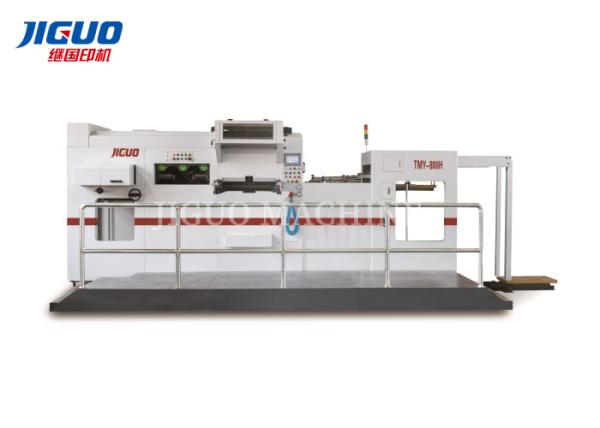

TMY-800H High efficiency automatic hot foil stamping die cutting
machine automatic embossing machine
Advantage
1. Which adopts high technology with chain main drive can run max
speed 7500s/h, shorter
preparation process and perfect quality, which professional applies
to all kinds of corrugated
board.
2. Paper hold down pressing plate is adjustable to adapt warped
board, no double sheets
to ensure continuous and smooth feeding.
3. Front gauge non-stop back and forth adjustable to accommodate
variation in gripper
margin.
4. Main drive adopts high quality precision worm gear and toggle
system.
5. Centreline system for quick stripping tool set up and change
over, compatiable with
centreline Il.
6. Front edge waste removal system removes and transfers waste edge
outside the
machine visa conveyor belt.
7. Counter can set based on your products stack request, which will
be improve working
efficiency.
8. Motorized upper frame suspending hoister.
Products Description
| PARAMETER |
| Model | TMY-800H |
| Max. sheet size | 810X610(mm) |
| Min. sheet size | 320X240(mm) |
| Max. die cutting size | 790X590(mm) |
| Max.stamping range | 750X540(mm) |
| Max.die cutting speed | 7500s/h |
| Sheet thickness | 0.1~1.5mm(Card paper) ≤4mm(corrugated paper) |
| Die cutting precision | ±0.1mm |
| Stamping tempreture | 0-200℃ |
| Heating plate zone number | 10 |
| NO.of foil rollers | 3 longitudinal / 2 transversal |
| Max.feeding pile height | 1400mm |
| Max.delivery pile height | 1200mm |
| Max.pressure | 250T |
| Total power | 53kw |
| Total weight | 12.5T |
| Overall dimension | 6400X3830X2200mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Feeding Positioning Section: The incline-type paper moving table
top is more suitable to
high-speed thin paper and location. Side location adopt dual
purpose side device with pull
and push, according to paper choose, it makes switch easier.It
could switch front rise position
arriving reduction of speed device, it is benefit of thin paper’s
locaton.
The Main Chain: The main chain of toothpicks are all imported pure
german iwis high-quality
chain,made in germany.
● Improve the tooth row body strength, reduce the noise, movable
tooth, tooth fixation to make
improvement, suitable for a mouth or mouth work.
● Improve the side lay strength, the service life of wearing parts
are fully extended and security.
● Enhance the feeding speed change mechanism, make the paper more
accurate positioning,
can guarantee the processing of thick paper, and is more suitable
for tissue paper.
● The redesigned steel plate frame, the rack structure, lock frame
plus limiting device, so it is
more conducive to processing, handling more convenient.
● The front lay to adjust the bevel gear transmission mode.
Position the side on the operation
surface for fixed side location, and commonly used operator side
pull lay to adapt. A movable
side positioning device is on the drive surface side, using the
guide column, which is very
favorable on the accuracy of the side positioning.
● The stamping part adopts the high performance motion controller,
centralized control. Jump
smoothly and accurately.
Application
This foil stamping & die-cutting machine is suitable for Cigarette Boxes,Wine Boxes,Plastic
Boxes,Hangtags,Paper Boxes,Corrugated Boxes,etc.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
