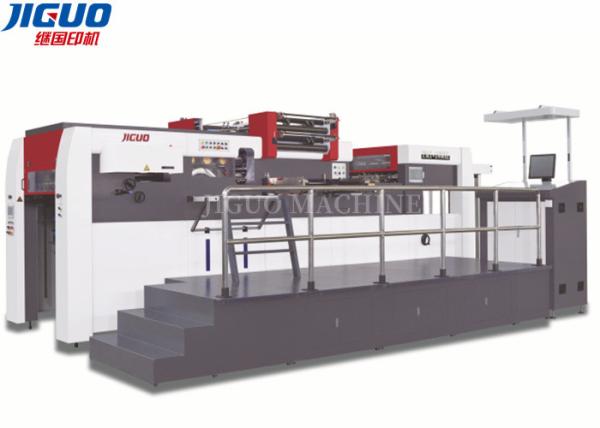

TMY-1060H Automatic Foil Stamping & Die Cutting machine
High Quality Foil Stamping Machine Export To Europe and USA
This is the key device for the production of paper boxes and high
standard paper products, etc. It is especially applicable to the
automatic die-cutting and stripping of complicated paper boxes and
cigarette cases to rationalize the production of paper boxes. This
machine is integrally assembled, transported and mounted, it can be
put into operated in one day, and thus the cost is reduced. The
precise assembly and high configuration make it better than Taiwan
machines and competitive with Japan machines.
All cuttings parts are designed stably without any scamp work or
stint material. The whole machine is 18T. The wall plate is 90mm thick (65mm commonly) and is shaped by cast steel with high tensile strength
against deformation. The crankshaft is made of fully quenched
chrome steel, the large worm wheel and all bearing bushes are made
of alloy copper, and the worm wheel is 80mm thick (65mm commonly). The worm is made of quenched bearing
steel by grinding (45# carbon steel not by grinding commonly). All
other parts are made of standard 45# steel at least, and all above
parts are directly guaranteed by our company.
Products Description
| PARAMETER |
| Model | TMY-1060H |
| Max. sheet size | 1060X760(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X740(mm) |
| Max.stamping range | 1030X730(mm) |
| Max.die cutting speed | 7500s/h |
| Sheet thickness | 0.1-3mm(Card paper) ≤4mm(corrugated paper) |
| Die cutting precision | ±0.1mm |
| Stamping tempreture | 20-200℃ |
| Heating plate zone number | 12 |
| NO.of foil rollers | 3 longitudinal / 2 transversal |
| Max.feeding pile height | 1600mm |
| Max.delivery pile height | 1400mm |
| Max.pressure | 350T |
| Total power | 70kw |
| Total weight | 18T |
| Overall dimension | 7600X4050X2500mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Advantage
Standard Parts
Imported parts and standard parts have special trademarks and they
cannot be counterfeited; the high price of a die-cutting machine
arises from the highly standard configuration as all bearings are
from Japan SK and key parts from better Sweden SKF. It is
integrated with Taiwan highly precise intermittent reduction gear,
and Germany main chain, even every a little screw is in the topmost
grade 12.9, and undoubtedly they are very important for the product
quality.
Electrical Parts
Electrical parts are famous brand products like standard parts. The
frequency governor, programmable controller (PLC computer), optical
switches and other key controlling elements are from Japan. Other
switches, contactors and relays are from France Schneider. The
perfection of high quality die-cutting machine is originated from
the world famous electrical configuration.
Standards for Assembling
This die-cutting machine is assembled to satisfy a high
requirement, so our company has established many high standard part
tolerances and assembling levels; e.g. the bearing tolerance is
within 0.02mm; the hardness of each quenched part is 45° above; all
bearing are assembled in the best process – hot assembling to
prevent forced knocking, and each part is assembled with a clear
tolerance record. When the assembled machine is operated with no
load for 48 hours, the bearing temperature cannot be 10°C higher
than the room temperature. No disorderly shutdown is allowable
within 500 pieces of paper, and there mustn’t be any nonacceptable
noise from the finally assembled machine. In all, each machine is
followed by a list of acceptance check, and it will not be accepted
if any item is beyond the standard.
FAQ
1.Q:Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q:What is your delivery time ?
A:Normal delivery time is 30-55working days beside less stock model
after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q:How was your machine warranty ?
A:our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q:How can you do after sales service ?
A:beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q:What’s your payment terms ?
A:30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
