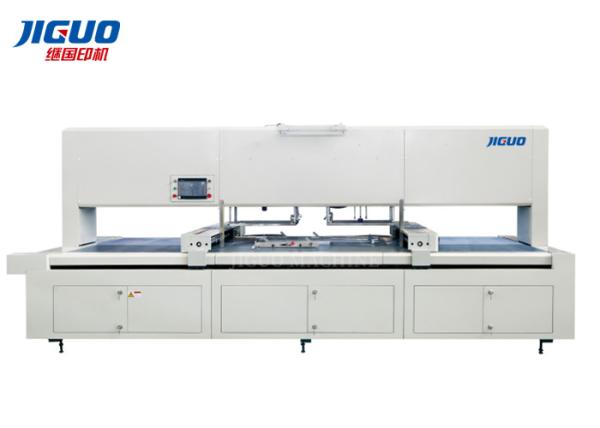

JIGUO QF-1080C Double Head Automatic High Quality Blanking Machine
Automatic Blanking Machine: This machine is used for blanking the
finished cardboard, plastic and leathers which processed by die
cutting machine. With compact structure, high pressure and
precision, it is easy for operation with reliable quality to lower
the working in tensity and labor cost. This machine is suitable for
printing, packaging and plastic industry, high speed.
Main Features
1. It replaces manual labor, and improves product quality and
enterprise benefit.
2. It adopts servo motor, Taiwan double guide rail and ball screw
which makes accuracy less than 0.02mm.
3. The latest hydraulic system with inserted motor and oil
temperature cooling fan (power 3.75kw). So it has constant and big
working pressure.
4. The complete machine is equipped with PLC, and with a touch
screen interface in operation. The operation is safe and easy.
Specifications
| PARAMETER |
| Model | QF-1080C |
| Max. Paper Size | 1080*780mm |
| Hydraulic pressure | Max. Pressure 4000KG |
| Machine Speed | Blanking Speed 500-800 times/hour |
| Precision | Positioning: 0.05 mm Repeating: 0.02 mm |
Max. Blanking Size | 400×400mm(B-model) |
Min.Stripping Size | 30×30mm |
| Max. Blanking Thickness | Paper 70g-1800g Thickness 60mm-95mm (50-200 sheets) |
| Operation System | PLC controlled |
| Power | 4.5kw |
Machine size | 4400×2000×2100mm(L×W×H) |
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support
to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is
suitable for long-distance road transportation and various types of
weather conditions. A full set of maintenance and operation manuals
is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send
technicians (engineers) to your factory for installation and
training. You shall pay round trip air fare and accommodations,
plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For
special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before
delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine
before packing. If you want to use specific material to do the test
running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery.
Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
