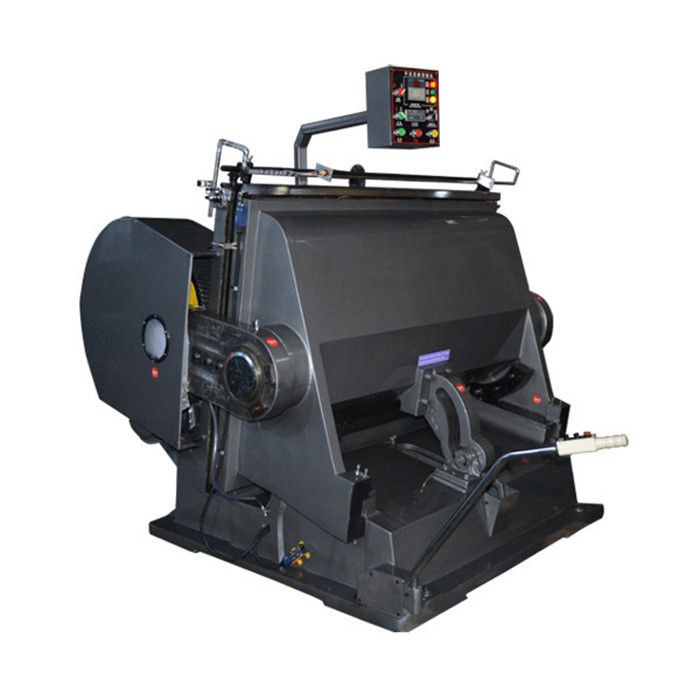

JIGUO ML-1400 Manual Die Cutting And Creasing Machine For
Corrugated Carton Paper
Products Description
| PARAMETER |
| Model | ML-1400 |
| Max. sheet size | 1400X1000(mm) |
| Machine speed(Strokes/Min) | 18±2 |
| Max.Rule Length(m) | <45m |
| Motor Power(kw) | 7.5KW |
| Total weight | 6000KG |
Machine Dimension | 2000*2450*1900mm |
Manual die cutting and creasing machine
The electrical control of the machine is divided into two kinds:
1. Operation control for the working function.
2. Safety protection control.
The operational control of the machine's working functions is
concentrated in the "control box", which is suspended in front of
the machine. Turn on the power knob and the red indicator light is
on, indicating that the control circuit is on standby. Press the
start button, the green indicator lights up, and the motor drags
the flywheel to run.
Press the indentation button, and the yellow indicator light is on,
indicating that the electromagnetic clutch is energized and the
pressure frame is running. The switch above the left hand handle in
parallel with the cutting button starts the cutting, and the total
stop is convenient for workers to operate. Press the stop button,
the motor, electromagnetic clutch power off, clutch armature off,
brake back to standby state.
The knob with two gears is used to select cutting mode, CONT is
continuous cutting. Press the frame for continuous, intermittent
work. DELAY is to open the DELAY time, the press for work
operation, in the open position will be retained by the preset
DELAY time.
Product Application
"JIGUO"serial die-cutting and creasing machine are available for
many materials,such as cardboard,corrugated board,plastic and leather.They are wildly used
in printing,package,decoration industry."JIGUO" products are sold well in the global
due to its high quality and good service.
Pre-Sales Service
- Inquiry and consulting support.
- Sample testing support.
- View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
We have full series die cutting machine as your refer
| No. | Model No. | Max. sheet Size(mm) | Weight (kg) |
| 1 | ML-750 | 750*520 | 2000 |
| 2 | ML-930 | 930*660 | 3000 |
| 3 | ML-1100 | 1100*800 | 4000 |
| 4 | ML-1200 | 1200*820 | 4300 |
| 5 | ML-1300 | 1300*920 | 5500 |
| 6 | ML-1400 | 1400*1000 | 6000 |
| 7 | ML-1500 | 1500*1050 | 6500 |
| 8 | ML-1500L | 1500*1150 | 6800 |
| 9 | ML-1600 | 1600*1250 | 11000 |
| 10 | ML-1800 | 1800*1300 | 12000 |
| 11 | ML-2000 | 2000*1400 | 13500 |
| 12 | ML-2500 | 2500*1600 | 20000 |
FAQ
1.Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18monthes) guarantee.
Beside guarantee we will supply cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after
sales service, using a full arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24 hours on phone / on site
technical support / on site service / preventive maintenance also
training again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also accepted for us .
