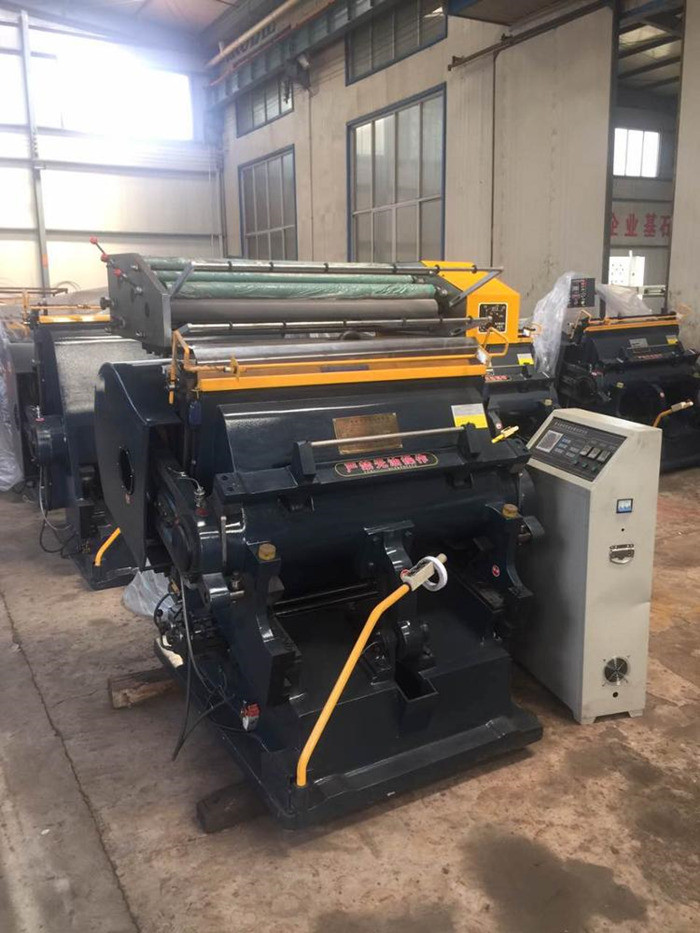

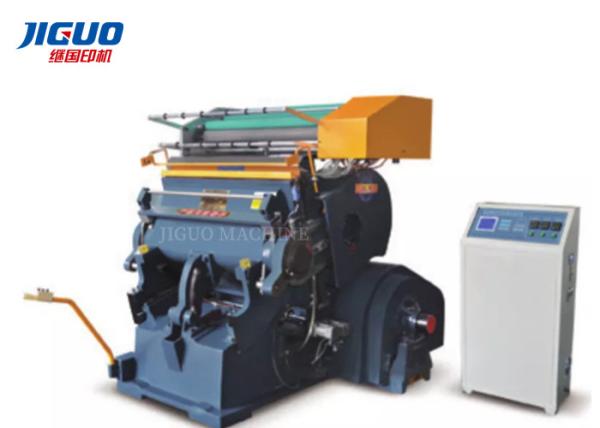

JIGUO TYMB-930 Computer Programmed Stamping Die Cutting & Creasing
Machine
Product Description
* The casting is HT250 grey cast iron, and then after annealing
treatment to achieve the casting (including the fuselage, pressure
frame, etc.) is not easy to deformation, fracture.
* The spindle adopts four phosphorus chromium steel, after
quenching and tempering treatment to improve the strength,
rigidity, hardness of the spindle to achieve the effect of not easy
deformation.
* The gear of the main part is made of chromite steel, which is
treated by quenching and tempering.
* The guide rail lining board of the machine is 38
chromium-molybdenum-aluminum, after nitriding treatment, strengthen
hardness, not easy to wear, can make the pressure of the machine up
and down for a long time to maintain balance and stability.
* Single - disc electromagnetic clutch is sensitive and reliable.
* Single pressure, continuous cutting and open delay three
functions, the delay range can be adjusted at will.
* Transmission connecting rod (pull arm) is made of ductile cast
iron, with high strength and toughness and strong tensile
resistance.
* Manual refueling, centralized refueling (optional) lubrication
system, can better ensure the smooth oil road, lubrication system
maintenance is more convenient.
* The driving part shaft sleeve adopts compound copper sleeve
(ensure lubrication). The precision of the machine is higher.
Indentation plate using 201# stainless steel plate.
* The electrical appliances of the machine are imported from China
delixi and Snade (exported from LG and Siemens)
* Hand clap triangle limit switch, emergency stop switch, hand push
rod limit switch, three safety devices to ensure safety.
* Can be installed inside and outside the movable plate frame,
plate installation (standard is external movable plate frame)
Products Description
| Main Parameters |
| Model | TYMB-930 |
| Max. Sheet Size | 930X670(mm) |
| Max.Foil Stamping Size | 920X660(mm) |
| Foil Roller Number | 3 Rollers |
Foil-Delivered Length | 640mm |
| Heating Plate Zone Number | 3 Zone |
| Range of Skip order | 0-99 time |
| Machine Speed (Strokes/Min) | 22±2 |
| Motor Power(kw) | 5.5KW |
| Total Power (kw) | 14.5KW |
| Machine Pressure | 170 Tons |
| Total weight | 3000kg |
| Dimension | 2200*1830*2000mm |
We have full series die cutting machine as your refer:
| No. | Model No. | Max. sheet Size(mm) | Weight (kg) |
| 1 | TYMB-750 | 750X520 | 2000kg |
| 2 | TYMB-930 | 930X670 | 3000kg |
| 3 | TYMB-1100 | 1100X800 | 4000kg |
| 4 | TYMB-1300 | 1300X920 | 5600kg |
| 5 | TYMB-1500 | 1500X1050 | 6800kg |
FAQ
1.Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one year (12 monthes) guarantee. Beside
guarantee we will supply cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after
sales service, using a full arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24 hours on phone / on site
technical support / on site service / preventive maintenance also
training again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also accepted for us .
