    500×500mm Automatic Hot Foil Stamping Machine Single Rolls for Paper Printer

    Ask Lasest Price
    Brand Name : JIGUO
    Model Number : YH-500
    Certification : CE
    Price : $50,000 to $150,000/1 Set
    Payment Terms : L/C, T/T
    Supply Ability : 50 set
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    500×500mm Automatic Hot Foil Stamping Machine Single Rolls for Paper Printer

    Automatic Servo Hot Stamping Machine Single Rolls 500×500mm


    Automatic Servo Hot Stamping Machine

    This machine is suitable for hot stamping anodized aluminum on various paper products, for leather, desk calendars, handbags, red envelopes, jewelry boxes, gift boxes, shoe boxes, tea boxes and other exquisite packaging.


    500×500mm Automatic Hot Foil Stamping Machine Single Rolls for Paper Printer

    Products Description​

    PARAMETER
    ModelYH-500
    Max. sheet size500X500(mm)
    Min. sheet size100X100(mm)

    Max.stamping range

    150X150(mm)

    Min.stamping range

    10X10(mm)

    Stamping speed

    1500s/h

    Power

    2.5kw

    Air requirements

    0.6-0.8Mpa,>0.36m³/min

    Power supply

    Three-phase 380V and reliable connection to the ground wire

    Stacking height

    340mm

    Spindle pressure

    1.5 tons

    Color registration accuracy

    ≤0.15mm

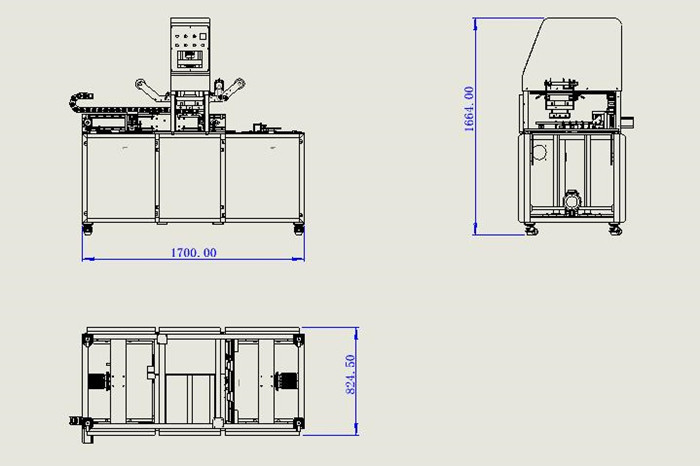

    Overall dimension

    1700x824.5x1664mm

    500×500mm Automatic Hot Foil Stamping Machine Single Rolls for Paper Printer


    Features

    - PLC control, easy to operate with one person.
    - Foil stamping pressure, temperature and time can be adjusted.

    - The feeding guide can be adjusted in both directions.

    - Foil stamping plate vertical position can be micro-adjusted through touch screen.

    -Servo motor for feeding, paper deliver and collecting with sensor for positioning.

    - Feeding and collecting table work up and down automatically.


    Product display

    500×500mm Automatic Hot Foil Stamping Machine Single Rolls for Paper Printer


    FAQ

    1. Q: Are you trading company or manufacturer?

    A: We are manufacturer, and also provide the business solution to all the friends.

    2. Q: What is your delivery time ?

    A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

    3. Q: Can you help us to buy other goods?

    A: Sure of that, it is our honor to work for you, and control the goods quality.

    4. Q: How was your machine warranty ?

    A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

    cost spare parts and free maintenance knowledge .

    5. Q: How can you do after sales service ?

    A: beside the quality guarantee, our company also regards the after sales service, using a full

    arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
    hours on phone / on site technical support / on site service / preventive maintenance also training
    again.

    6. Q: What’s your payment terms ?

    A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

    accepted for us .
