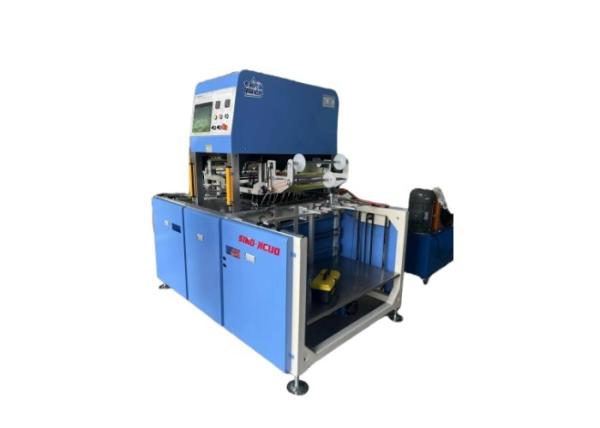

YH-700S Automatic Hot Stamping Machine (Double Rolls)
Application Automatic Hot Stamping Machine:
This machine is a new type of automatic hot stamping equipment,
which is widely used in hot stamping processing of various flat
materials such as paper hot stamping. Such as invitations,
invitations, envelopes, packaging gift boxes, etc. Hot stamping
processing, more personalized, improve product quality.
Feature:
1. PLC control, simple and convenient operation, one person can
operate.
2. Hot stamping pressure, temperature and hot stamping time are
adjustable.
3. The material guide rail can be adjusted horizontally and
vertically, and the hot stamping adjustment is convenient.
4. The lifting and lowering of the hot stamping board can be
adjusted through the touch screen input.
5. The paper feeding servo motor is controlled, and the
photoelectric positioning of the paper delivery is adjustable.
6. The material table is automatically raised and lowered.
7. Automatic hot stamping program.
8. With safety protection function, the machine can automatically
stop when it is close to the dangerous area of the equipment to
Protect personal safety to the greatest extent.
9. Double stamping roll.
Products Description Automatic Hot Stamping Machine
| PARAMETER |
| Model | YH-700S |
| Max. sheet size | 700X600(mm) |
| Min. sheet size | 100X100(mm) |
Max.stamping range | 300X200(mm) |
Min.stamping range | 10X10(mm) |
Stamping speed | 1500s/h |
Max. Paper Piles height | 520mm |
Sheet Thickness | Cardboard: 70-2000gsm |
Die-Cutting Precision | ±0.15mm |
No. of Foil Rollers | 1 roll |
Max. Stamping Pressure | 2.5tons |
Total Weight | 900KG |
Total Power | 3.2kw |
Power | 220V |
Air requirement | 0.6---0.8 MPa,0.36m³/min (Customer provided) |
Overall Dimension | 2000×1098.5×1772mm |
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to
all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock
model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the
goods quality.
4. Q: How was your machine warranty ?
A: Our all machines has one and half year (18mouthes) guarantee.
Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: Beside the quality guarantee, our company also regards the after
sales service, using a full
arrange of service to solve the problems of clients. We supply
multiple channels of service by 7x24
hours on phone / on site technical support / on site service /
preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at
sight L/C, western union /cash are also
accepted for us .
