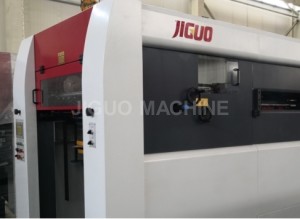

JIGUO MY-1060H Automatic Die-Cutting & Creasing Machine China
Automatic Die-Cutting & Creasing Machine Advantage
1. High work efficiency
The automatic die-cutting machine has high working efficiency, and
if there are enough products, it can seize a larger market, which
is conducive to the better development of the enterprise.
2. Good quality of work
Choosing a fully automatic die-cutting machine can set accurate
data parameters, avoiding the problem of different parameters of
manual participation, so the quality of the products produced
should be better, and it can ensure that each standard of the
product is the same, bringing a better corporate image.
3. Save labor cost
Enterprises use fully automatic die-cutting machine equipment,
which only needs one or two people to control.
4. Create better production space
Only a few automated die-cutting machines are placed in the
production space, or an assembly line is formed, and the production
space will be orderly.
Automatic Die-Cutting & Creasing Machine Products Description
| PARAMETER |
| Model | MY-1060H |
| Max. sheet size | 1060X760(mm) |
| Min. sheet size | 400X360(mm) |
| Max. die cutting size | 1040X740(mm) |
| Max.cutting speed | 7500s/H |
| Die cutting precision | ±0.1mm |
| Sheet thickness | 0.1~4mm |
| Die-cutting Pressure | 350T |
| Total power | 21kw |
| Total weight | 17T |
| Overall dimension | (5100+1450)X(2280+1850)X(2330+670)mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Automatic Die-Cutting & Creasing Machine Detailed Images
3)To improve the working efficiency, paper feeding and collecting
are realized by Taiwan WANSHSIN dual-speed reduction motor which
provides a long service life and a high torsional force, and it
saves time due to its high lowering speed. | 1.Paper Feeding Unit 1)The enlarged paper feeding head (Feeder head) has 9 suction
nozzles applicable for paper in different thicknesses and 5 paper
feeding nozzles which can be independently adjusted for parallel
paper feeding. It also has 4 paper lifting nozzles which can move
up and down in a large stroke especially applicable for small
corrugated paper. The large power wind pump provides a high suction
force. It can be conveniently adjusted; paper can be divided
reliable, and it runs fast and stably.
2)By the special secondary paper feeding and preliminary paper
stacking, the primary and secondary can be shifted to ensure
uninterrupted paper feeding.
|
 | 2. Paper Conveying Unit: 1)The paper conveying part is made of stainless steel plate to
prevent rust and provide stable and correct paper conveying.
2)Paper is positioned by a pushing unit and a pulling unit which
can be shifted conveniently for different specifications of paper. |
6)The paper holding rack chain is imported from Germany, which
provides a long service life and a stable die-cutting precision.
7)The Taiwan intermittent mechanism is the main transmission part
of the die-cutting machine, and it improves the die-cutting speed
and precision and reduces the device noise, while the speed and
precision cannot be realized by any domestic mechanism.
8)The torque limiter is equipped with overload protection. The
primary and secondary units can be separated at any overload to
ensure the machine can be operated safely. The Italia pneumatic
brake and clutch with rotary joint comply with the European
standard. They provide fast clutching, high and stable force, long
service life and low noise. | 3. Die-cutting Unit 1)The cast wall plate is rejected because of its low pulling force
but high deformation, and steel wall plate is applied like Japan
machines. The pulling force is enlarged, i.e. the pressing force is
enlarged, and it becomes firm and endurable without any
deformation.
2)This machine is upgraded to a brand high level by the automatic
pressure regulation and automatic front scale regulation. The
addition of this function upgrades it into a convenient and
favorable digital device with high controlling speed.
3)The oil route is forcibly lubricated by a oil pump as made in
Taiwan to reduce wearing, an oil cooler is added to cool the
lubricating oil, and the main chain is lubricated timely to improve
the operation efficiency.
4)The novel transmission mechanism provides high speed die-cutting,
and the highly precise swing link platform improves the padding
speed (almost without padding), as it is known the pressure can be
hardly balanced in most of other common machines.

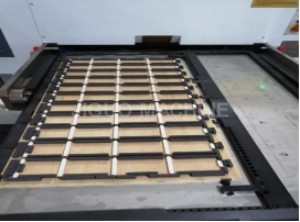

5)The pneumatic plate locking unit can fix the upper frame more
firmly and faster. In our die-cutting machine, the front, back,
left and right are pneumatically locked simultaneously to realize a
high correctness and a high speed. However, common machines are
tightened by screws.
|
 | 4. Paper Collecting Unit 1)Paper can be collected automatically and orderly.
2)The efficiency is improved by an uninterrupted paper collecting
grid plate, and when paper is stacked to the specified height, the
paper collecting grid plate will be replaced by another plate for
uninterrupted paper collecting.
3)By the pneumatic sampling, the die-cut paper can be conveniently
inspected at any time. |
