JIGUO ZWS-400B Automatic Slitting Machine Paper Roll Cutting
Machine
Introduction of Automatic Slitting Machine
This machine is used for slitting and rewinding various large
rolling materials such as paper,cellophane paper,bill
paper,double-face adhesive tape,PVC etc.
1. The air-expansion shaft is used for winding, which makes the
positioning of the paper tube accurate and easy;
2. The edge blanking system: steel-to-steel edge blanking,
independent cylinder adjustment, easy to adjust, so that each layer
of paper is not delaminated;
3. Horizontal paper unwinding Rack, pneumatic paper feeding,
pneumatic wide belt feeding, each roll of base paper has an
independent tension adjustment device;
4. Use front and rear jog switches to pull the base paper, which is
easier and safer to operate;
Automatic Slitting Machine Specifications
| Model | S400B-1100 | S400B-1300 | S400B-1500 | S400B-1700 |
| Max. Speed | 400m/min |
| Slitting Width | 30-1100mm | 30-1300mm | 30-1500mm | 30-1700mm |
| Rewinding Diameter | 600mm |
| Unwinding Diameter | 1200mm |
| Slitting Precision | ±0.1mm |
| Loading Weight | 1.5T |
| Dimension | 4254×3300×1990 | 4454×3300×1990 | 4654×3300×1990 | 4854×3300×1990 |
| Weight | 5.7T | 6T | 6.3T | 6.8T |
| Power | 27KW | 29KW | 32KW | 34KW |
| Power Supply | 380V/50HZ |
| Applicable Materials | Aluminium Foil/PE/Self-adhesive paper/Kraft paper/Cardboard/Coated
Paper and other paper products |
Automatic Slitting Machine Local introduction

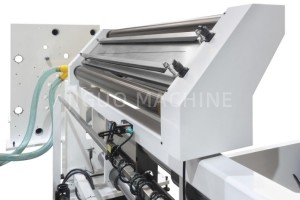

Connection Platform
When it needs to change the unwinding rolls, no need to re-insert
paper, it is easily to connect the rolls through the connection
platform. |  |
Edge Position Correction Controller
Adopt high-end brand Taiwan SRISE controller, it control the error
in the minimum range. |  |

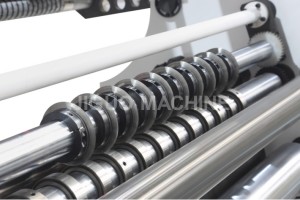

Slitting Part
1) Slitting part can be divided into two functions: Round blade
slitting and Straight knife slitting, for paper or film material,
it is according to the customer’s requirements. 2) The slitting precision can reach ±0.1mm 3) At the same time, it can also customize the switching function
of round knife and straight knife according to customer needs, no
need to dismantle. |  |
FAQ
Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support
to buyer at low cost.
Q3. What is the production time while placing order?
A: Normally about 20-30 days.
Q4. What is the delivery time?
A: 35-50days after deposit.
Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
Q6. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is
suitable for long-distance road transportation and various types of
weather conditions. A full set of maintenance and operation manuals
is included.
Q7. How about the machine installation and training?
A: 1) We provide training in our factory for free; 2) We can send
technicians (engineers) to your factory for installation and
training. You shall pay round trip air fare and accommodations,
plus each technician charges USD100/per day.
Q8. Do you have machines in stock?
A: For standard model, we have a large quantity in stock.For
special model,we need 20-30 days to produce for you.
Q9. How can you assure the machines' quality?
A: Each machine will be test running at least 24 hours before
delivery to assure the quality. And during the warranty, we will
give spare parts for free if machine has any problem.
Q10. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine
before packing. If you want to use specific material to do the test
running, you need to pay for the cost of the material
Q11. What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery.
Also accept payment by West Union or L/C at sight.
Q12. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q13. How many years are you in printing field?
A: JIGUO factory is more than 20years.
