Mother roll width

Max width 1600 mm

Slitting numbers

According to the clients’ demand (Normal 10 sets slitting knives)

Mother roll’s diameter

Max.Ф2300mm(customized), (Standard 1600mm)

Mother roll paper core’s diameter

3”(76.2mm)or 6”(152.4mm) or according to the clients’ demand

Mother roll weight

Max. 3000kg (shaftless)

Finished roll width

Min. width 50mm(depends on the material)

Finished roll diameter

Max. Ф800mm

Production speed

Max 0-500m/min

Cutting accuracy

±0.2mm

Machine weight

4000kg

Power

30KW

Main power supply

3*380V /50HZ

1. Unwind Stand

Type: shaftless unwinder

2. Tension control system

Type: Automatic constant tension control system

When the material through sensor, that automatic feedback to the PLC control system to, increase or reduce the tension that control the tension automatically.

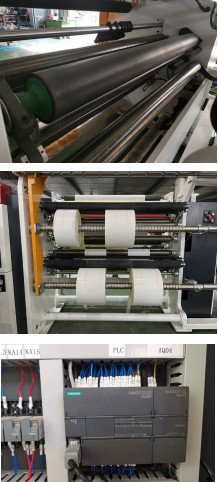

3 Slitting system

Type: High precision slitting knife system

10 sets slitting knives (Add glue remover)

Upper slitting knife is self-locking knife. It can be moved up, down, left and right by hand wheel. Easy to change knife. According to client’s all slitting width, we will arrange all width in one shaft. Easy to operate and make sure the accuracy.

4 Rewinding system

Type: 2 sets slip shaft rewinding system

1) Use A, B two slip shafts to rewind the finished roll, automatically unloading the finished roll, normal use 3” slip shafts, the size could be customized

2) Each slip shaft is controlled by one motor

5. Transporting System

Type: Transporting system

The main motor controls the transmission system, the rubber roller drives the material, and the aluminum roller assists the transmission

6. Control system

Type: Siemens PLC control system

1)Automatic stop when finish

2)automatic meter calculation

3)automatic web correction system

4)PLC control, set through the touch screen

5)Automatic unloading system(option)

7. Accessories

Type: spare parts
