Product Description:
■ TMY-1320High automatic hot embossing and foil stamping and
die-cutting machine is a key equipment for post-printing processing
such as die-cutting, creasing and embossing. The electrical
components and transmission components adopt internationally
renowned brands to ensure die-cutting accuracy and operational
reliability. The human-machine interface can monitor the machine's
operating status in real time. It adopts unique transmission
devices such as high-precision indexing mechanism, pneumatic door
closing, pneumatic clutch, overload protection, automatic pressure
relief, etc. to ensure the machine runs smoothly and at high speed.
The machine is equipped with practical and reliable mechanisms such
as pre-stacking device, secondary paper collection mechanism,
manual sampling, etc. to ensure the excellent performance of the
machine.
Applications:
Stable and durable, safe and user-friendly design, and easy
operation are the main concepts of this machine model. It adopts
the European CE safety certification standard, has made major
innovations in the frame and overall structure, and has made
detailed improvements in safety protection, making the machine
performance more stable and the operation safer and more
convenient. This machine is mainly used for die-cutting, creasing,
cold embossing, and hot stamping of cartons and labels in the
packaging industry. Especially for various high-end printed
products such as cigarette boxes, wine boxes, gift boxes,
electrical boxes, and cosmetic boxes, die-cutting, creasing, cold
embossing, and hot stamping can also be done on this machine,
making the printed products three-dimensional and exquisite.
Technical Information:
| Model | TMY-1320High |
| Max. Paper Size | 1320×960mm |
| Min. Paper Size | 450×400mm |
| Max. Cutting Size | 1300×940mm |
| Max. Pressure | 600T |
| Sheet Thickness | Cardboard:0.1~3mm Corrugated Board:<4mm |
| Max. Die Cutting Speed | 5500sheets/h |
| Max. Stamping Speed | 5000sheets/h |
| Die-Cutting Precision | ±0.1mm |
| Max.foil width | 1300mm |
| Min.foil width | 25mm |
| Total power | 38KW |
| Weight | 26T |
| Air requirement | 0.8Mpa,＞0.36m³/min |
| Overall Dimension | 8700×4700×2700mm |
Partial Introduction:

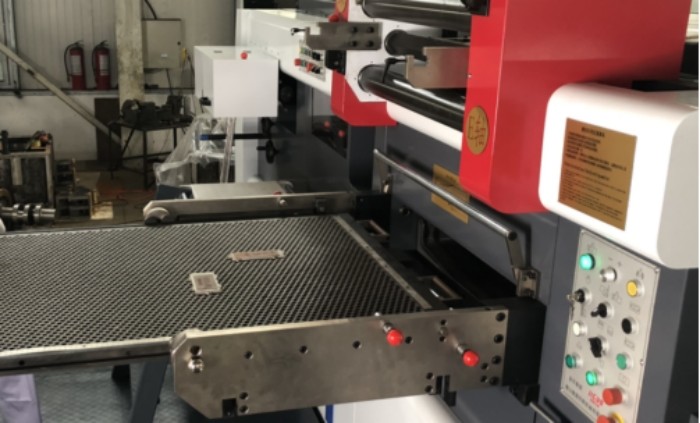

 | ■ Non-stop high-speed paper feeding unit ■ Enlarged feeder head, 9 paper suction nozzles, can adapt to
different thickness of paper; 5 paper feeding nozzles, can be
adjusted independently, parallel feeding; 4 paper lifting nozzles,
can move up and down with a large stroke; high-power air pump,
strong suction, easy adjustment, reliable paper separation, fast
and stable operation. |
 |
■ Rewinding Foil Device: Keep foil tension constant, meanwhile,
easily rewinding the waste foil to roller. It is convenient to
remover.
■ Used Foil Removal Brushes: The foil removal brushes are driven by
servo motors. These rollers are synchronized with foil feeding
rollers so as to maintain a constant tension of foil. |
 |
■ The foil can step in both cross and longitudinal two directions
(2 cross rollers and 3 longitudinal rollers), which can greatly
meet different client's needs in various stamping.
■ The foil can step, which greatly meet client's needs in various
stamping. 12 heating zones can be set individually and in constant
temperature.
■ Adopting imported servo-motor and computer for foil control
system, foil convey and tension is constant. |
