• The “all-in-one machine” starting with the number “2” is a long linkage line that allows the paper to pass through the machine only once through multiple machines to complete various processes such as “hot stamping”, “deep embossing”, “die cutting”, and “stripping”.The productivity is 3 to 4 times of normal die cutting and foil stamping machine. Two platen press sections working at 6000 sheets per hours with 1070mm sheet size which can bring higher productivity and lower cost to your company. The high accurate operation can provide high efficiency working process. This machine is your best choice for foil stamping and die cutting multi-process production.Double Unit machine can reduced labor intensity. Multiple optional configuration can adapt to your various production requirements.
• The High series 600 ton pressure machine is positioned for high pressure heavy-duty die-cutting machines, characterized by high pressure, large part size, large machine weight, and long body life.
• Equipped with the function of deep embossing, with a pressure of 600 tons, it can perform high pressure deep embossing work for a long time while still ensuring accuracy and lifespan.
• There are two target customer groups for this model. Firstly, there are customers who have special needs to increase the pressure on the machine, such as works with thick paper such as die-cutting gray board paper, works with hard plastic materials such as PVC and PET, works with products such as die-cutting jigsaw puzzles that have a lot of cutting pieces and cutting lines, and so on. Secondly, customers who want to buy good machines, those who have quality requirements, pay more attention to quality and material craftsmanship, and want to buy durable machines, providing a better choice for these customers.
• Imported main chains, main transmission bearings, PLC, frequency converters, and various electrical switches, with excellent performance, accurate die-cutting accuracy, and long service life.
• The body components are produced using a machining center with high accuracy and are made of special steel materials, which can withstand high pressure loads and have strong durability.
• Add an optional function of using an electrically controlled roller shutter as automatic non-stop paper receiving function, which is faster than manual functions.
• The stamping system adopts an intelligent temperature control mode, which ensures uniform and fast heating. Constant temperature control can enhance the stability of the stamping effect.
• The fully computerized hot foil stamping structure has foil skip control system which is optimized for servo control, with synchronous foil retraction and release, constant tension, and more accurate.
• Add an optional function of two waste foil collection methods: the outer winding of the hair wheel and the inner winding of the winding. The inner winding of the foil is more convenient, and the longitudinal foil feeding device can be pulled out as a whole for easy operation. It has an automatic foil pressing device to prevent scratching the foil.
•

Available Configuration:

1. 2TTP 106Hih :
1st Unit: High Hot pressure Embossing and 3 Longitudinal foil shaft and 2 transversal foil shaft
2nd Unit: High hot pressure Embossing and 3 Longitudinal foil shaft and stripping

2. 2TRP 1060High:
1st Unit: High Hot pressure Embossing and 3 Longitudinal foil shaft and 2 transversal foil shaft
2nd Unit: High hot pressure Embossing and stripping

3. 2TT 1060High:
1st Unit: High Hot pressure Embossing and 3 Longitudinal foil shaft and 2 transversal foil shaft
2nd Unit: High hot pressure Embossing and 3 Longitudinal foil shaft

Technical Parameters:

Feature highlights:

Paper Feeding Unit

Paper Conveying Unit

• Mechanical double sheet device for cardboard, supersonic double sheet detector for paper *option
• Electric front gauge
• Push-pull integrated side gauge. Paper is positioned by a pushing unit and a pulling unit
•
•

• Die cutting and foil stamping unit

• Electric pressure regulation function.
• Automatic pressure maintenance and pressure relief function.This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.
• The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.
• The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italian pneumatic brake and clutch with rotary joint comply with the European standard. They provide fast clutching, high and stable force, long service life and low noise.

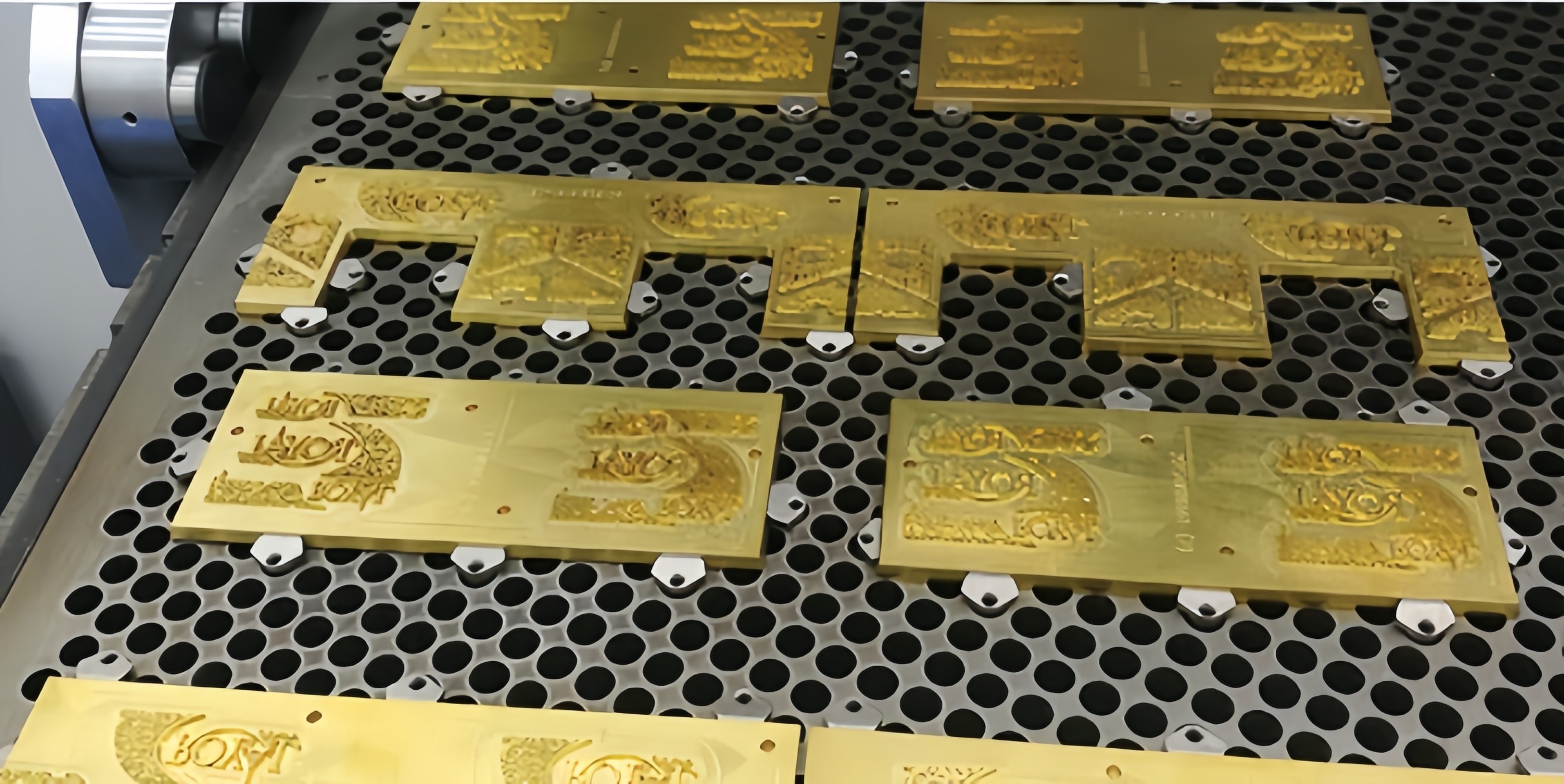

• Two hot stamping unit help complete complex jobs in one go
• Hot stamping memory function stores operation formulas to reduce preparation time.
• Adopting imported servo-motor and computer for foil control system, foil convey and tension is constant.
• Adopting imported servo-motor and computer for foil control system, the foil conveyed synchronized, tension is constant and the transmission leapfrogging is more accurate.
• Holographic hot stamping (optional)
•

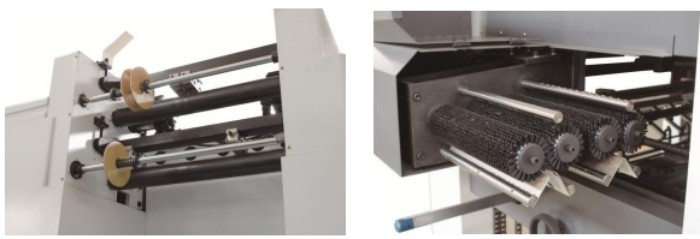

• Rewinding Foil Device and Used Foil Removal Brushes
• Rewinding Foil Device: Keep foil tension constant, meanwhile, easily rewinding the waste foil to roller. It is convenient to remover.
• Used Foil Removal Brushes: The foil removal brushes are driven by servo motors. These rollers are synchronized with foil feeding rollers so as to maintain a constant tension of foil.
•

• Paper stripping unit

• By the one-time stripping system,all extraneous scraps of paper and scrap (except the held margins) can be stripped in die-cutting.
• The up, down and middle die cam three-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating.
• The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time.
• Three-frame stripping mechanism
• All three frames have center positioning function
• One-touch automatic positioning function for the upper stripping frame
• Pneumatic up and down movement of the upper stripping frame
• One-touch automatic locking function for the upper stripping frame
• Quick locking function for the middle stripping frame
• Quick positioning function for the bottom stripping frame
• The pre-installed platform is equipped with a centering unit to facilitate the mounting of stripping plate.(optional)
• The stripping process is reasonably designed to eliminate the defect of low speed and plate deviating during stripping.
•

Paper delivery Unit

• Uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.
• Pneumatic sampling, paper can be conveniently inspected at any time.

Workshop:

Exhibition:

FAQ:

Q: What is the brand name of this hot foil stamping machine?

A: The brand name is JIGUO.

Q: What is the model number of this hot foil stamping machine?

A: The model number is T-MYRP-1060High.

Q: What certification does this hot foil stamping machine have?

A: It is certified with CE.

Q: Where is this hot foil stamping machine manufactured?

A: It is manufactured in CHINA.

Q: What are the payment terms accepted for purchasing this hot foil stamping machine?

A: Payment terms accepted are L/C and T/T.
